AS1901 Ultra Low-Power uP Supervisory Circuit

AS1901 Description

www.DataSheet4U.com AS1901, AS1902, AS1903 Ultra Low-Power µP Supervisory Circuit D a ta S he e t 1 General .
The AS1901/2/3 family is an ultra low-power supervisory circuit device.

AS1901 Features

* ! ! Low 230nA (typ) Supply Current Precision Monitoring of 2.5-, 3-, and 3.3V-Power Supplies Supply Voltage Range: 1.0 to 3.6V Reset Threshold Range: 2.2 to 3.1V Available in 3 Versions: - AS1901 Push Pull RESETN - AS1902 Push Pull RESET - AS1903 Open Drain RESETN ! ! ! The AS1901 has a push-pull

AS1901 Applications

* All devices are available in a 3-pin SOT23 package. 3 Applications The devices are ideal for computers, intelligent instruments, controllers, critical microprocessor and microcontroller, power monitoring and portable/batterypowered equipment. Figure 1. Functional Block Diagrams VCC 3 VDD VCC VCC

📥 Download Datasheet

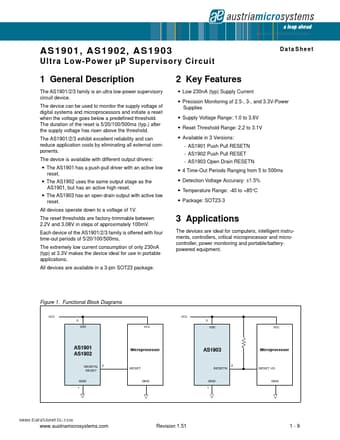

Preview of AS1901 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AS1901
Manufacturer
austriamicrosystems AG
File Size
239.92 KB
Datasheet
AS1901_austriamicrosystemsAG.pdf
Description
Ultra Low-Power uP Supervisory Circuit
