AS1902 - Ultra Low-Power uP Supervisory Circuit

Download the AS1902 datasheet PDF. This datasheet also covers the AS1901 variant, as both devices belong to the same ultra low-power up supervisory circuit family and are provided as variant models within a single manufacturer datasheet.

Description

The AS1901/2/3 family is an ultra low-power supervisory circuit device.

The device can be used to monitor the supply voltage of digital systems and microprocessors and initiate a reset when the voltage goes below a predefined threshold.

Features

  • ! ! Low 230nA (typ) Supply Current Precision Monitoring of 2.5-, 3-, and 3.3V-Power Supplies Supply Voltage Range: 1.0 to 3.6V Reset Threshold Range: 2.2 to 3.1V Available in 3 Versions: - AS1901 Push Pull RESETN - AS1902 Push Pull RESET - AS1903 Open Drain RESETN ! ! ! The AS1901 has a push-pull driver with an active low reset. The AS1902 uses the same output stage as the AS1901, but has an active high reset. The AS1903 has an open drain output with active low reset. ! ! ! ! 4 Time-Out Per.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (AS1901_austriamicrosystemsAG.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number AS1902
Manufacturer austriamicrosystems AG
File Size 239.92 KB
Description Ultra Low-Power uP Supervisory Circuit
Datasheet download datasheet AS1902 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AS190-73 PHEMT GaAs IC High Linearity 3 V Control SPDT Switch 0.1-2 GHz Alpha Industries
AS191-73 PHEMT GaAs IC High Linearity 3 V Control SPDT Switch 0.1-2 GHz Alpha Industries
AS192-300 PHEMT GaAs IC High Power SP4T Switch 0.1-2.5 GHz Alpha Industries
AS193-73 PHEMT GaAs IC High Linearity 3 V Control SPDT Switch 0.1-2.5 GHz Alpha Industries
AS193-73 PHEMT GaAs IC High-Linearity 3V Control SPDT Switch Skyworks Solutions

Other Datasheets by austriamicrosystems AG

Part Number Description
AS1901 Ultra Low-Power uP Supervisory Circuit
AS1903 Ultra Low-Power uP Supervisory Circuit
AS1904 Ultra Low-Power uP Supervisory Circuit
AS1905 Ultra Low-Power uP Supervisory Circuit
AS1906 Ultra Low-Power uP Supervisory Circuit

Full PDF Text Transcription

Click to expand full text

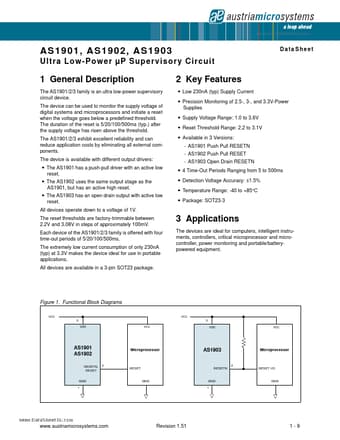

www.DataSheet4U.com AS1901, AS1902, AS1903 Ultra Low-Power µP Supervisory Circuit D a ta S he e t 1 General Description The AS1901/2/3 family is an ultra low-power supervisory circuit device. The device can be used to monitor the supply voltage of digital systems and microprocessors and initiate a reset when the voltage goes below a predefined threshold. The duration of the reset is 5/20/100/500ms (typ.) after the supply voltage has risen above the threshold. The AS1901/2/3 exhibit excellent reliability and can reduce application costs by eliminating all external components. The device is available with different output drivers: ! 2 Key Features ! ! Low 230nA (typ) Supply Current Precision Monitoring of 2.5-, 3-, and 3.3V-Power Supplies Supply Voltage Range: 1.0 to 3.
