AS196-307 GaAs IC High Isolation SPDT Non-Reflective Switch with Driver DC-6.0 GHz

AS196-307 Description

Preliminary GaAs IC High Isolation SPDT Non-Reflective Switch with Driver DC *6.0 GHz AS196-307 .
The AS196-307 is a GaAs FET IC SPDT non-reflective switch packaged in a 16 lead leadless exposed pad plastic package for low cost, high isolation comm.

AS196-307 Features

* I Positive Voltage Control (0/+3 to 0/+5 V) I High Isolation (55 dB @ 0.9 GHz and 1.9 GHz) I LPCC 4 x 4 mm Package I Integrated Silicon CMOS Driver I Non-Reflective 0.157 (4.00 mm) ± 0.008 (0.20 mm) SQ. LPCC 4 x 4 (-307) TOP VIEW PIN 1 INDICATOR 0.10 -A- BOTTOM VIEW 0.013 (0.325 mm) REF. 0.110 (2.

AS196-307 Applications

* Ideal building block for base station applications where synthesizer isolation is critical. Typical applications include GSM, PCS, WCDMA, 2.4 and 5.8 GHz ISM and wireless local loop. 0.076 (1.95 mm) BSC 0.110 (2.79 mm) ± 0.002 (0.05 mm) 0.033 (0.85 mm) ± 0.004 (0.10 mm) 0.016 (0.40 mm) REF. 0.01

📥 Download Datasheet

Preview of AS196-307 PDF

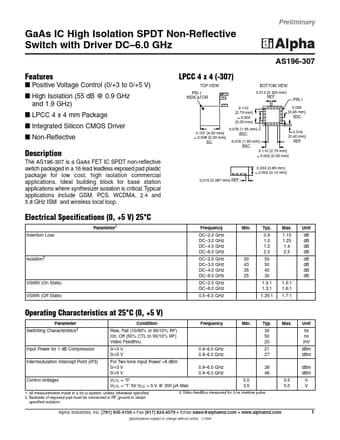

datasheet Preview Page 2

Datasheet Details

Part number
AS196-307
Manufacturer
Alpha Industries
File Size
332.02 KB
Datasheet
AS196-307_AlphaIndustries.pdf
Description
GaAs IC High Isolation SPDT Non-Reflective Switch with Driver DC-6.0 GHz
