EGP20A - SINTERED GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER

Product Overview

Zowie Technology

Part number	EGP20A
Manufacturer	Zowie Technology
File Size	57.16 KB
Description	SINTERED GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER
Datasheet	EGP20A Datasheet

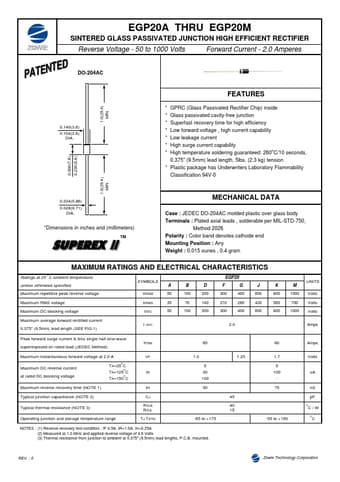

Additional preview pages of the EGP20A datasheet.

GPRC (Glass Passivated Rectifier Chip) inside.
Glass passivated cavity-free junction.
Superfast recovery time for high efficiency.
Low forward voltage , high current capability.
Low leakage current.
High surge current capability.
High temperature soldering guaranteed: 260oC/10 seconds, 0.375" (9.5mm) lead length, 5lbs. (2.3 kg) tension.
Plastic package has Underwriters Laboratory Flammability Classification 94V-0 0.300(7.6) 0.230(5.8) 1.0(25.4) MIN. 0.0.
