EGP10AH SINTERED GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER

EGP10AH Description

EGP10AH THRU EGP10MH SINTERED GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER Reverse Voltage - 50 to 1000 Volts Forward Current - 1.0 Ampere PP.

EGP10AH Features

* Halogen-free type
* GPRC (Glass Passivated Rectifier Chip) inside
* Glass passivated cavity-free junction
* Compliance to RoHS product
* Low forward voltage, high current capability
* Low leakage current
* High surge current capability
* High temperature soldering g

📥 Download Datasheet

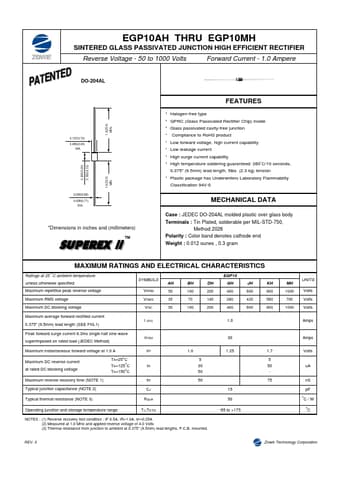

Preview of EGP10AH PDF
datasheet Preview Page 2

Datasheet Details

Part number
EGP10AH
Manufacturer
Zowie
File Size
52.60 KB
Datasheet
EGP10AH-Zowie.pdf
Description
SINTERED GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER
