1N5942BP-TPX01

The 1N5942BP-TPX01 is 1.5 Watt Zener Diode designed by ZBMCC.

Product Overview

ZBMCC

Part number	1N5942BP-TPX01, 1N5913BP-TPX01
Manufacturer	ZBMCC
File Size	666.12 KB
Description	1.5 Watt Zener Diode
Datasheet	1N5913BP-TPX01-ZBMCC.pdf
Note	This datasheet PDF includes multiple part numbers: 1N5942BP-TPX01, 1N5913BP-TPX01. Please refer to the document for exact specifications by model.

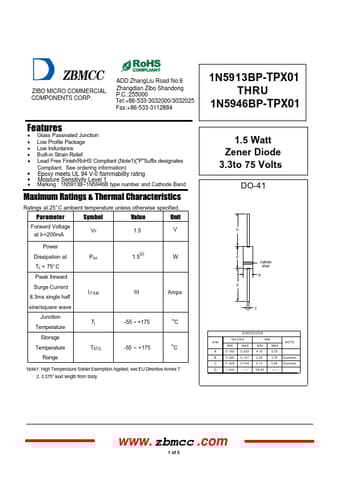

Additional preview pages of the 1N5942BP-TPX01 datasheet.

Glass Passivated Junction.
Low Profile Package.
Low Inductance.
Built-in Strain Relief.
Lead Free Finish/RoHS Compliant (Note1)("P"Suffix designates Compliant. See ordering information).
Epoxy meets UL 94 V-0 flammability rating.
Moisture Sensitivity Level 1.
Marking : 1N5913B~1N5946B type number and Cathode Band Maximum Ratings & Thermal Characteristics Ratings at 25°C ambient temperature unless otherwise specified. Par.
