1N5942BP

The 1N5942BP is Axial-Leaded 1.5 Watt Zener Diodes designed by Microsemi.

Product Overview

Microsemi

Datasheet Details

Part number	1N5942BP, 1N5913BP
Manufacturer	Microsemi
File Size	210.94 KB
Description	Axial-Leaded 1.5 Watt Zener Diodes
Datasheet	1N5913BP-Microsemi.pdf
Note	This datasheet PDF includes multiple part numbers: 1N5942BP, 1N5913BP. Please refer to the document for exact specifications by model.

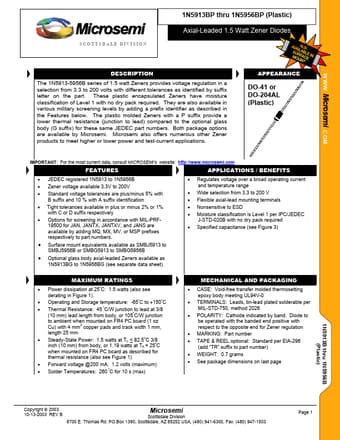

Additional preview pages of the 1N5942BP datasheet.

Product details

Description

The 1N5913-5956B series of 1.5 watt Zeners provides voltage regulation in a selection from 3.3 to 200 volts with different tolerances as identified by suffix letter on the part.

Features

below. The plastic molded Zeners with a P suffix provide a lower thermal resistance (junction to lead) compared to the optional glass body (G suffix) for these same JEDEC part numbers. Both package options are available by Microsemi. Microsemi also offers numerous other Zener products to meet higher or lower power and test-current.
