1N5942BG

The 1N5942BG is Axial-Leaded 1.5 Watt Glass Zener Diodes designed by Microsemi Corporation.

Product Overview

Microsemi Corporation

Datasheet Details

Part number	1N5942BG, 1N5913
Manufacturer	Microsemi Corporation
File Size	336.03 KB
Description	Axial-Leaded 1.5 Watt Glass Zener Diodes
Datasheet	1N5913-BG.pdf
Note	This datasheet PDF includes multiple part numbers: 1N5942BG, 1N5913. Please refer to the document for exact specifications by model.

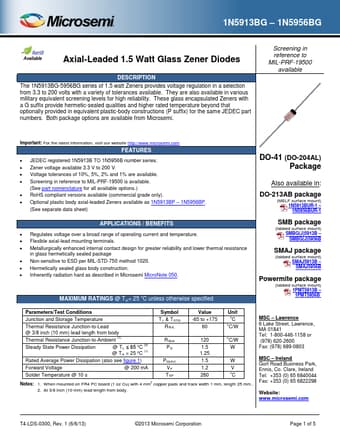

Additional preview pages of the 1N5942BG datasheet.

Product details

Description

The 1N5913BG-5956BG series of 1.5 watt Zeners provides voltage regulation in a selection from 3.3 to 200 volts with a variety of tolerances available.

Features

JEDEC registered 1N5913B TO 1N5956B number series.
Zener voltage available 3.3 V to 200 V.
Voltage tolerances of 10%, 5%, 2% and 1% are available.
Screening in reference to MIL-PRF-19500 is available. (See part nomenclature for all available options. ).
RoHS compliant versions available (commercial grade only).
Optional plastic body axial-leaded Zeners available as 1N5913BP.
1N5956BP. (See separate data sheet).
