MUR1020D Ultra-Fast Recovery Diode

MUR1020D Description

MUR1020D RoHS COMPLIANT Pin 2 Pin 3 Ultra-Fast Recovery Diodes 10A FRED .

MUR1020D Features

* Adopt FRED chip
* Low forward Voltage drop
* Fast reverse recovery time
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and long term reliability Pi

MUR1020D Applications

* Typical applications are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. Mechanical Data
* Package: TO-252 Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant
* Terminals: Tin plated leads, solderable per J-STD002 and JESD22-B10

📥 Download Datasheet

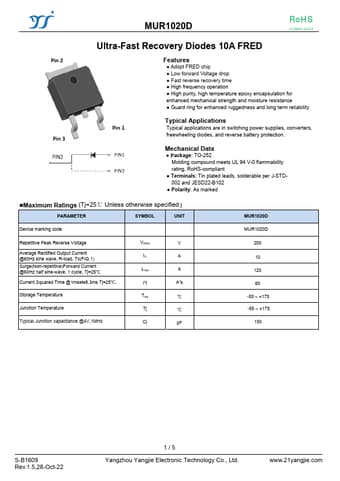

Preview of MUR1020D PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MUR1020D
Manufacturer
Yangzhou Yangjie
File Size
254.87 KB
Datasheet
MUR1020D-YangzhouYangjie.pdf
Description
Ultra-Fast Recovery Diode
