MUR1020CD Ultra-Fast Recovery Diode

Yangzhou Yangjie

Description

MUR1020CD RoHS COMPLIANT Pin 2 Pin 3 Ultra-Fast Recovery Diodes 5A *2 FRED .

📥 Download Datasheet

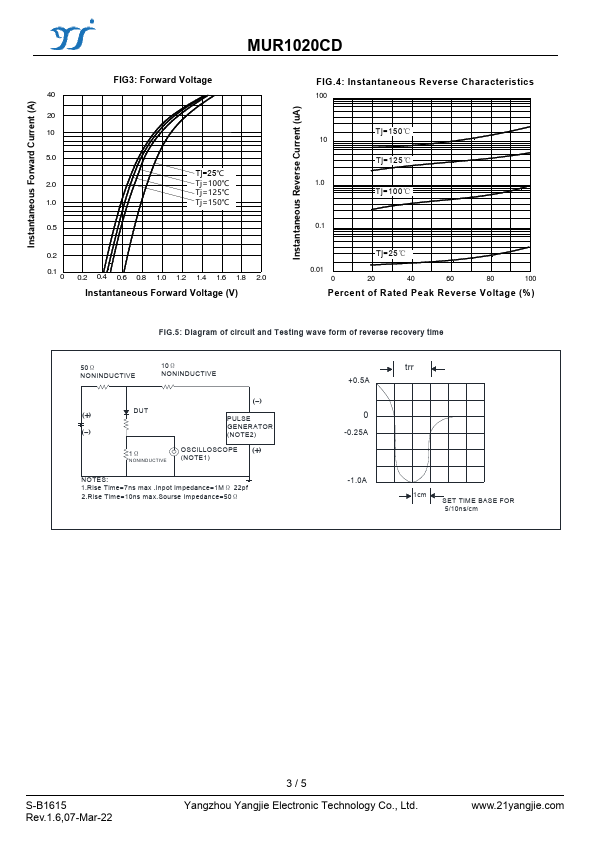

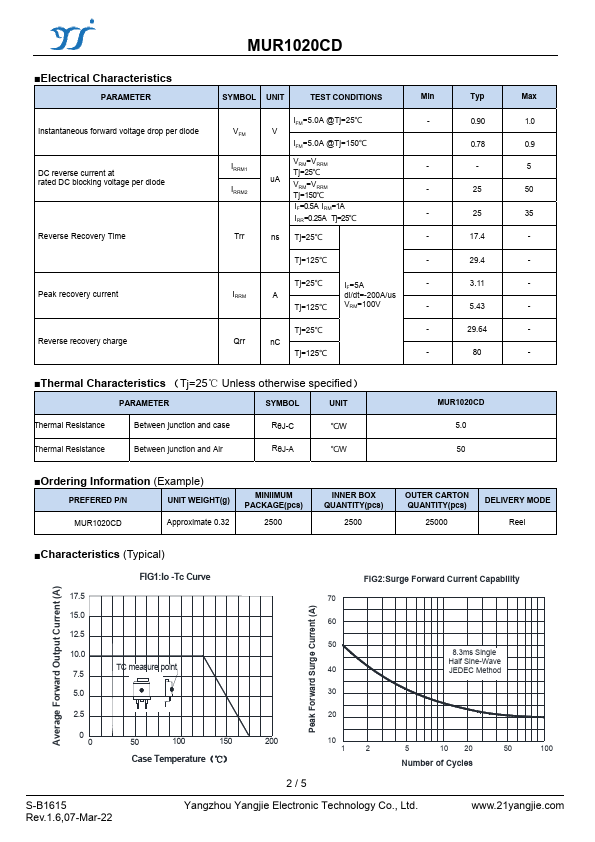

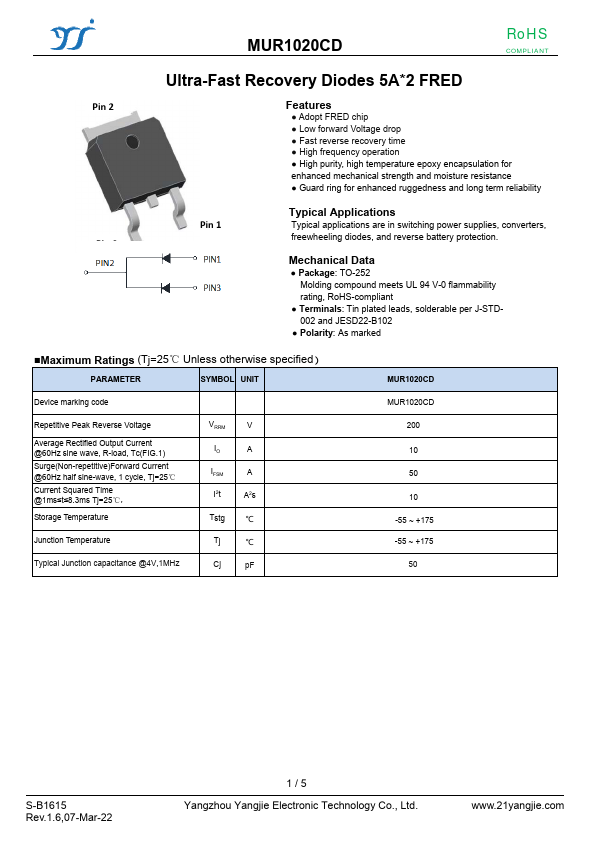

MUR1020CD Datasheet Preview — Preview of MUR1020CD PDF

Datasheet Specifications

Part number: MUR1020CD
Manufacturer: Yangzhou Yangjie
File Size: 245.74 KB
Datasheet: MUR1020CD-YangzhouYangjie.pdf
Description: Ultra-Fast Recovery Diode

Features

* Adopt FRED chip
* Low forward Voltage drop
* Fast reverse recovery time
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and long term reliability Pi

Applications

* Typical applications are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. Mechanical Data
* Package: TO-252 Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant
* Terminals: Tin plated leads, solderable per J-STD002 and JESD22-B10
