MUR1020 GLASS PASSIVATED SUPER FAST RECTIFIER

MUR1020 Description

R SEMICONDUCTOR MUR1020 THRU MUR1060(SINGLE CHIP) GLASS PASSIVATED SUPER FAST RECTIFIER Reverse Voltage - 200 -600 Volts Forward Current - 10.0Ampere.

MUR1020 Applications

* High temperature soldering guaranteed:260 C/10 seconds, JF MUR1060 0.25"(6.35mm)from case Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC 0.160(4.05) 0.140(3.55) MECHANICAL DATA Case: JEDEC TO-220AC molded plastic body Terminals: Lead solderable per MIL-STD-750,method 2026 Polar

📥 Download Datasheet

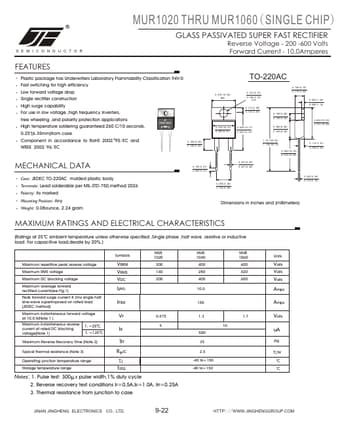

Preview of MUR1020 PDF
datasheet Preview Page 2

Datasheet Details

Part number
MUR1020
Manufacturer
JINAN JINGHENG ELECTRONICS
File Size
67.41 KB
Datasheet
MUR1020-JINANJINGHENGELECTRONICS.pdf
Description
GLASS PASSIVATED SUPER FAST RECTIFIER
