VB1205S-1W - DC-DC CONVERTER

General Description

Note:PIN”7” can’t connect any component.

SHENZHEN SUNYUAN TECHNOLOGY CO., LTD.

Meihua Rd.

Key Features

  • of the majority of Sunyuan components DC-DC converters is the high galvanic isolation capability. This allows several variations on circuit topography by using a single DC-DC converter. The basic input to output isolation can be used to provide either a simple isolated output power source, or to generate different voltage rails and /or dual polarity rails. These configurations are most often found in data processing, instrumentation and other noise sensitive circuits where it is necessary to iso.

📥 Download Datasheet

Datasheet Details

Part number VB1205S-1W
Manufacturer YUAN
File Size 146.12 KB
Description DC-DC CONVERTER
Datasheet download datasheet VB1205S-1W Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
VB1204M N-Channel MOSFET VBsemi
VB1210 N-Channel MOSFET VBsemi
VB125 HIGH VOLTAGE IGNITION COIL DRIVER POWER IC STMicroelectronics
VB125SP HIGH VOLTAGE IGNITION COIL DRIVER POWER IC STMicroelectronics
VB10150S High Voltage Trench MOS Barrier Schottky Rectifier Vishay

Other Datasheets by YUAN

Part Number Description
VB1205S-2W DC-DC CONVERTER
VB1205D-1W DC-DC CONVERTER
VB1205D-2W DC-DC CONVERTER
VB1209S-1W DC-DC CONVERTER
VB1209S-2W DC-DC CONVERTER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

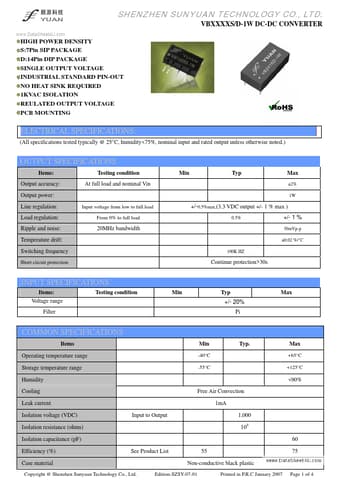

15:29 SHENZHEN SUNYUAN TECHNOLOGY CO., LTD. VBXXXXS/D-1W DC-DC CONVERTER www.DataSheet4U.com HIGH POWER DENSITY S:7Pin SIP PACKAGE D:14Pin DIP PACKAGE SINGLE OUTPUT VOLTAGE INDUSTRIAL STANDARD PIN-OUT NO HEAT SINK REQUIRED 1KVAC ISOLATION REULATED OUTPUT VOLTAGE PCB MOUNTING ELECTRICAL SPECIFICATIONS: (All specifications tested typically @ 25°C, humidity<75%, nominal input and rated output unless otherwise noted.) OUTPUT SPECIFICATIONS Items: Testing condition Output accuracy: At full load and nominal Vin Output power: Line regulation: Input voltage from low to full load Load regulation: From 0% to full load Ripple and noise: 20MHz bandwidth Temperature drift: Switching frequency Short circuit protection Min Typ Max ±2% 1W +/-0.5%max,(3.3 VDC output +/- 1 % max ) 0.
