XP2332GEN - N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

📥 Download Datasheet

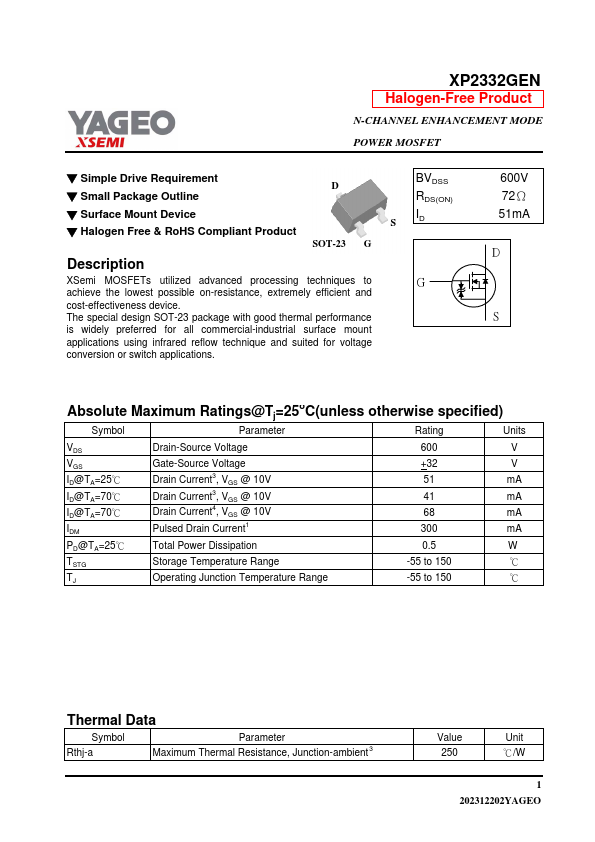

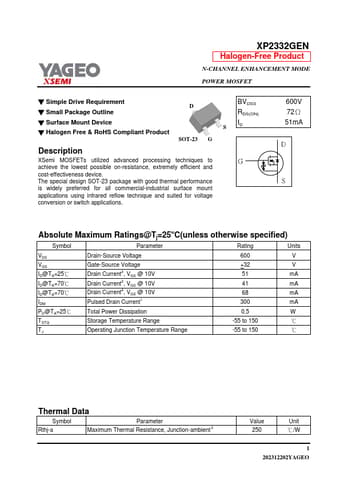

XP2332GEN Datasheet Preview — Preview of XP2332GEN PDF

Datasheet Details

Part number	XP2332GEN
Manufacturer	YAGEO
File Size	144.99 KB
Description	N-CHANNEL ENHANCEMENT MODE POWER MOSFET
Datasheet	XP2332GEN-YAGEO.pdf

XP2332GEN Product details

Description

XSemi MOSFETs utilized advanced processing techniques to G achieve the lowest possible on-resistance, extremely efficient and cost-effectiveness device.The special design SOT-23 package with good thermal performance is widely preferred for all commercial-industrial surface mount applications using infrared reflow technique and suited for voltage conversion or switch applications.600V 72Ω 51mA D S Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating
