XP2306AGN - N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

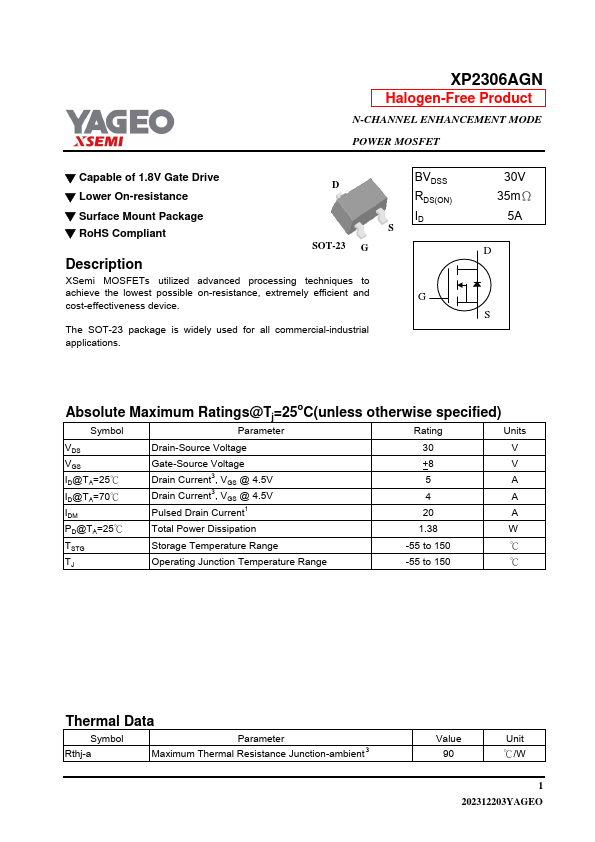

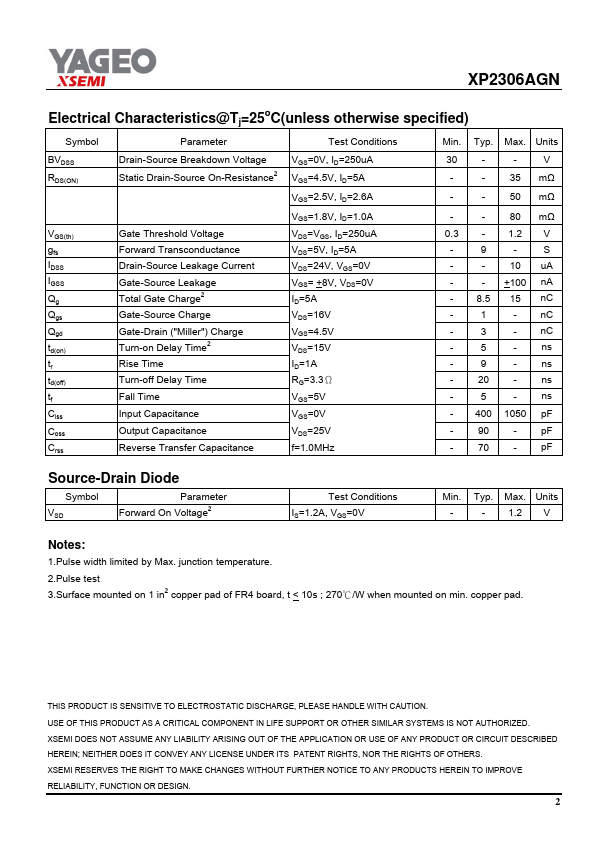

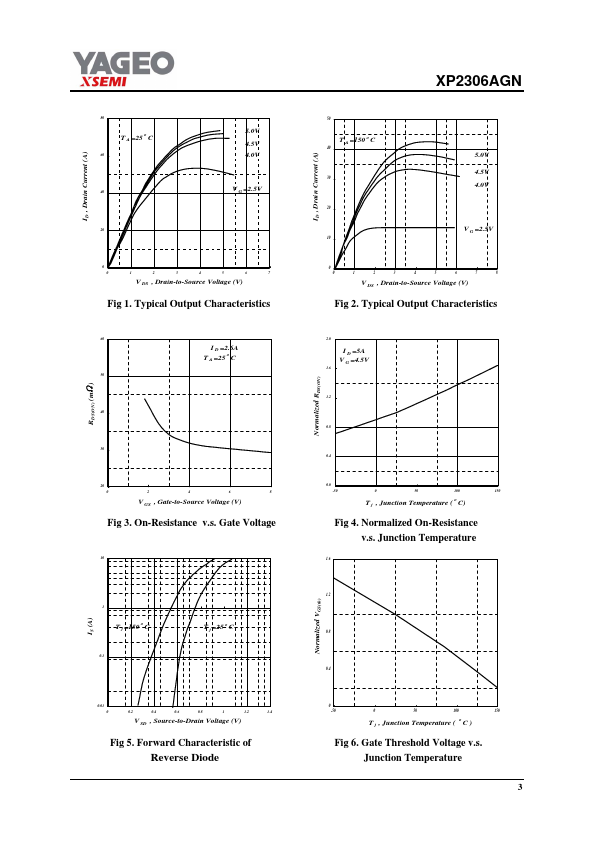

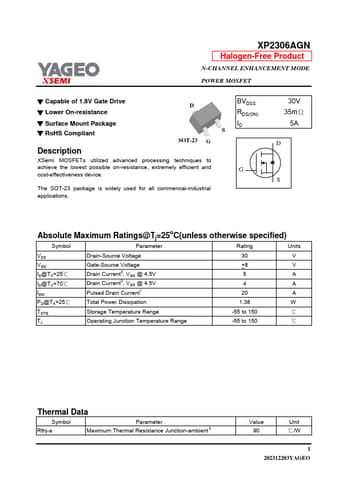

XP2306AGN Datasheet Preview — Preview of XP2306AGN PDF

Datasheet Details

Part number	XP2306AGN
Manufacturer	YAGEO
File Size	180.28 KB
Description	N-CHANNEL ENHANCEMENT MODE POWER MOSFET
Datasheet	XP2306AGN-YAGEO.pdf

XP2306AGN Product details

Description

XSemi MOSFETs utilized advanced processing techniques to achieve the lowest possible on-resistance, extremely efficient and G cost-effectiveness device.The SOT-23 package is widely used for all commercial-industrial applications.30V 35mΩ 5A D S Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating Units VDS VGS ID@TA=25℃ ID@TA=70℃ IDM PD@TA=25℃ TSTG TJ Drain-Source Voltage Gate-Source Voltage Drain Current3, VGS @ 4.5V Drain Current3, VGS @ 4.5V Puls
