XC5215, XC5200 - Field Programmable Gate Arrays

Name: XC5215
SKU: XC5215-1210599

Xilinx

The XC5215 by Xilinx is a Field Programmable Gate Arrays. Below is the official datasheet preview.

Datasheet Details

Part number	XC5215, XC5200
Manufacturer	Xilinx
File Size	568.70 KB
Description	Field Programmable Gate Arrays
Datasheet	XC5200-Xilinx.pdf
Note	This datasheet PDF includes multiple part numbers: XC5215, XC5200. Please refer to the document for exact specifications by model.

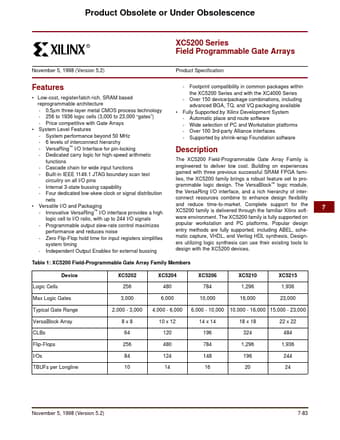

Additional preview pages of the XC5215 datasheet.

Low-cost, register/latch rich, SRAM based reprogrammable architecture - 0.5µm three-layer metal CMOS process technology - 256 to 1936 logic cells (3,000 to 23,000 “gates”) - Price competitive with Gate Arrays.
System Level Features - System performance beyond 50 MHz - 6 levels of interconnect hierarchy - VersaRing™ I/O Interface for pin-locking - Dedicated carry logic for high-speed arithmetic functions - Cascade chain for wide input functions - Built-in IEEE 1149.1 JTAG bound.
