XC5206 - Field Programmable Gate Arrays

Download the XC5206 datasheet PDF (XC5200 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for field programmable gate arrays.

Features

  • Low-cost, register/latch rich, SRAM based reprogrammable architecture - 0.5µm three-layer metal CMOS process technology - 256 to 1936 logic cells (3,000 to 23,000 “gates”) - Price competitive with Gate Arrays.
  • System Level Features - System performance beyond 50 MHz - 6 levels of interconnect hierarchy - VersaRing™ I/O Interface for pin-locking - Dedicated carry logic for high-speed arithmetic functions - Cascade chain for wide input functions - Built-in IEEE 1149.1 JTAG bound.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (XC5200-Xilinx.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • XC5011 - 1mA~200mA Linear Li-Ion Battery Charger (XySemi)
  • XC5071 - 600mA Linear Li-Ion Battery Charger (XySemi)
  • XC5102 - 1A Linear Li-Ion Battery Charger (XySemi)
  • XC56156 - 16bit General Purpose Digital Signal Processor (Freescale Semiconductor)
Other Datasheets by Xilinx
  • XC5200 - Field Programmable Gate Arrays
  • XC5202 - Field Programmable Gate Arrays
  • XC5204 - Field Programmable Gate Arrays
  • XC5210 - Field Programmable Gate Arrays
  • XC5215 - Field Programmable Gate Arrays
  • XC5VFX100T - Field Programmable Gate Array
  • XC5VFX130T - Field Programmable Gate Array
  • XC5VFX200T - Field Programmable Gate Array

Full PDF Text Transcription

Click to expand full text

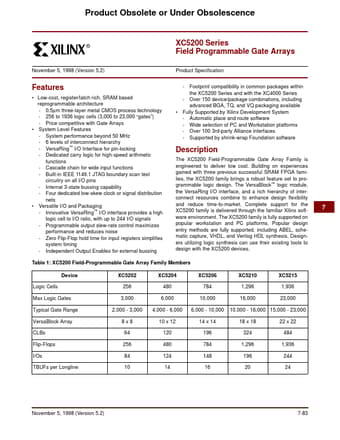

Product Obsolete or Under Obsolescence 0 R XC5200 Series Field Programmable Gate Arrays November 5, 1998 (Version 5.2) 0 7* Product Specification Features • Low-cost, register/latch rich, SRAM based reprogrammable architecture - 0.5µm three-layer metal CMOS process technology - 256 to 1936 logic cells (3,000 to 23,000 “gates”) - Price competitive with Gate Arrays • System Level Features - System performance beyond 50 MHz - 6 levels of interconnect hierarchy - VersaRing™ I/O Interface for pin-locking - Dedicated carry logic for high-speed arithmetic functions - Cascade chain for wide input functions - Built-in IEEE 1149.
