SD101AW, SD101AW-Won SURFACE MOUNT SCHOTTKY BARRIER DIODE

SD101AW Description

® WON-TOP ELECTRONICS SD101AW * SD101CW SURFACE MOUNT SCHOTTKY BARRIER DIODE Pb .

SD101AW Features

* Low Forward Voltage
* Fast Switching Speed
* PN Junction Guard Ring for Transient and ESD Protection

SD101AW Applications

* Plastic Material
* UL Recognition Flammability Classification 94V-0 C A B Mechanical Data
* Case: SOD-123, Molded Plastic
* Terminals: Plated Leads Solderable per MIL-STD-202, Method 208
* Polarity: Cathode Band
* Weight: 0.01 grams (approx. )
* Marking: Device Co

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SD101AW, SD101AW-Won. Please refer to the document for exact specifications by model.

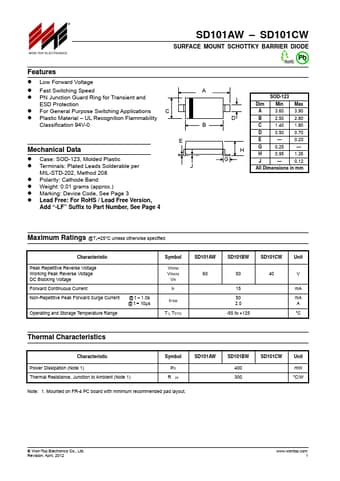

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SD101AW, SD101AW-Won
Manufacturer
Won-Top Electronics
File Size
84.08 KB
Datasheet
SD101AW-Won-TopElectronics.pdf
Description
SURFACE MOUNT SCHOTTKY BARRIER DIODE
Note
This datasheet PDF includes multiple part numbers: SD101AW, SD101AW-Won.
Please refer to the document for exact specifications by model.
