SD101A - SCHOTTKY BARRIER DIODES

Name: SD101A
SKU: SD101A-1590761

Sunmate

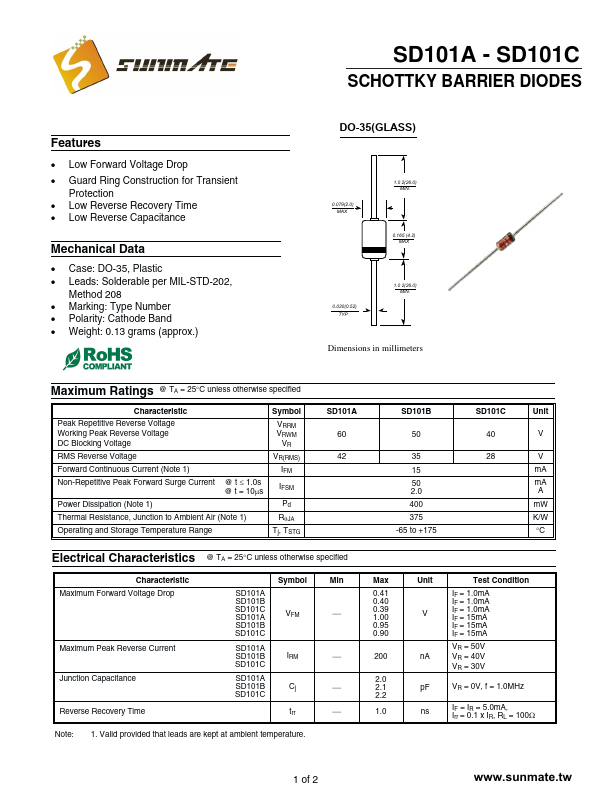

The SD101A by Sunmate is a SCHOTTKY BARRIER DIODES. Below is the official datasheet preview.

Datasheet Details

Part number	SD101A
Manufacturer	Sunmate
File Size	264.31 KB
Description	SCHOTTKY BARRIER DIODES
Datasheet	SD101A-Sunmate.pdf

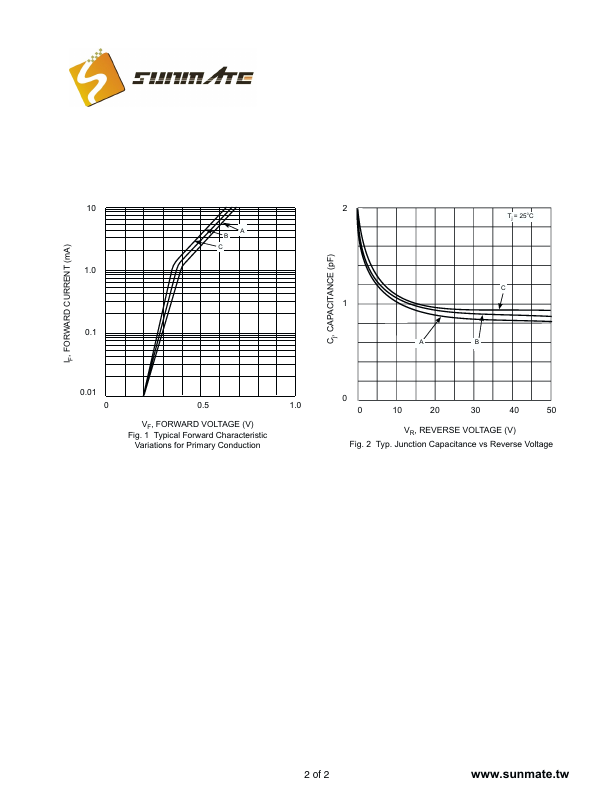

Additional preview pages of the SD101A datasheet.

Low Forward Voltage Drop.
Guard Ring Construction for Transient Protection.
Low Reverse Recovery Time.
Low Reverse Capacitance Mechanical Data.
Case: DO-35, Plastic.
Leads: Solderable per MIL-STD-202, Method 208.
Marking: Type Number.
Polarity: Cathode Band.
Weight: 0.13 grams (approx. ) DO-35(GLASS) 0.079(2.0) MAX 1.0 2(26.0) MIN. 0.165 (4.2) MAX 0.020(0.52) TYP 1.0 2(26.0) MIN. Dimensions in millimeters Maximum Ratings @ TA = 25°C unless othe.
