SD101AWS - Schottky Barrier Diode

Features

  • Low Forward Voltage Drop.
  • Guard Ring Construction For Transient Protection.
  • Negligible Reverse Recovery Time.
  • Low reverse capacitance.
  • Ultra-small surface mount package Pb Lead-free.

📥 Download Datasheet

Datasheet preview – SD101AWS

📁 Similar Datasheet

  • SD101AWS - SURFACE MOUNT SCHOTTKY BARRIER DIODE (Diodes)
  • SD101AWS - SCHOTTKY DIODES (WEJ)
  • SD101AWS - Small Signal Schottky Diodes (MCC)
  • SD101AWS - Schottky Diodes (LGE)
  • SD101AWS - Surface Mount Schottky Barrier Rectifiers (SeCoS)
  • SD101AWS - Surface Mount Schottky Barrier Diodes (WEITRON)
  • SD101AWS - SURFACE MOUNT SCHOTTKY BARRIER (Pan Jit International)
  • SD101AWS - SCHOTTKY BARRIER DIODES (EIC)
  • SD101AWS - SCHOTTKY DIODES (RECTRON)
  • SD101AWS - SURFACE MOUNT SCHOTTKY BARRIER DIODE (SEMTECH)
Other Datasheets by GME

Full PDF Text Transcription

Click to expand full text

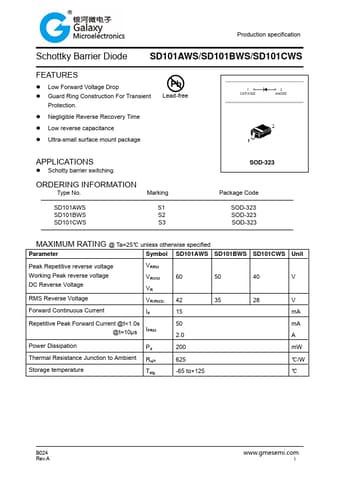

Production specification Schottky Barrier Diode SD101AWS/SD101BWS/SD101CWS FEATURES  Low Forward Voltage Drop  Guard Ring Construction For Transient Protection.  Negligible Reverse Recovery Time  Low reverse capacitance  Ultra-small surface mount package Pb Lead-free APPLICATIONS  Schotty barrier switching. ORDERING INFORMATION Type No. Marking SD101AWS SD101BWS SD101CWS S1 S2 S3 SOD-323 Package Code SOD-323 SOD-323 SOD-323 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Parameter Symbol SD101AWS SD101BWS SD101CWS Unit Peak Repetitive reverse voltage VRRM Working Peak reverse voltage DC Reverse Voltage VRWM 60 50 40 V VR RMS Reverse Voltage VR(RMS) 42 35 28 V Forward Continuous Current IF 15 mA Repetitive Peak Forward Current @t<1.
