1SS388, 1SS388-Won, SURFACE MOUNT SCHOTTKY BARRIER DIODE

® WON-TOP ELECTRONICS 1SS388 SURFACE MOUNT SCHOTTKY BARRIER DIODE Pb .

1SS388-Won-TopElectronics.pdf

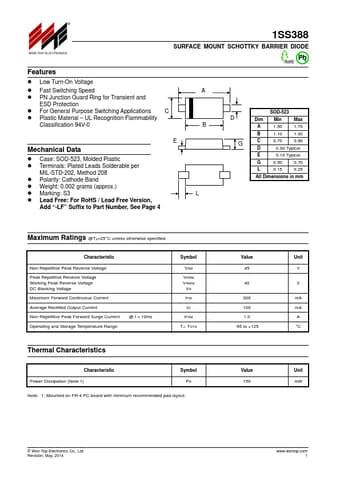

1SS388 Datasheet Preview — This datasheet PDF includes multiple part numbers: 1SS388, 1SS388-Won. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

1SS388, 1SS388-Won

Manufacturer:

Won-Top Electronics

File Size:

37.21 KB

Description:

SURFACE MOUNT SCHOTTKY BARRIER DIODE

Note:

This datasheet PDF includes multiple part numbers: 1SS388, 1SS388-Won.
Please refer to the document for exact specifications by model.

Features

* Low Turn-On Voltage
* Fast Switching Speed
* PN Junction Guard Ring for Transient and ESD Protection

Applications

* Plastic Material
* UL Recognition Flammability Classification 94V-0 C Mechanical Data
* Case: SOD-523, Molded Plastic
* Terminals: Plated Leads Solderable per MIL-STD-202, Method 208
* Polarity: Cathode Band
* Weight: 0.002 grams (approx. )
* Marking: S3
* Lead
