E3M0040120J2 Silicon Carbide Power MOSFET

Wolfspeed

E3M0040120J2 Description

E3M0040120J2 Silicon Carbide Power MOSFET E-Series Automotive N-Channel Enhancement Mode .

E3M0040120J2 Features

* Package
* 3rd generation SiC MOSFET technology
* Optimized package with separate driver source pin
* 4.7mm of creepage distance between drain and source
* High blocking voltage with low on-resistance
* High-speed switching with low capacitances

E3M0040120J2 Applications

* Motor Control
* EV Battery Chargers
* High Voltage DC/DC Converters Part Number E3M0040120J2 Package TO-263-7XL Marking E3M0040120J2 Maximum Ratings (TC = 25 ˚C unless otherwise specified) Symbol VDSmax VGSmax Drain - Source Voltage Gate - Source Voltage Parameter

📥 Download Datasheet

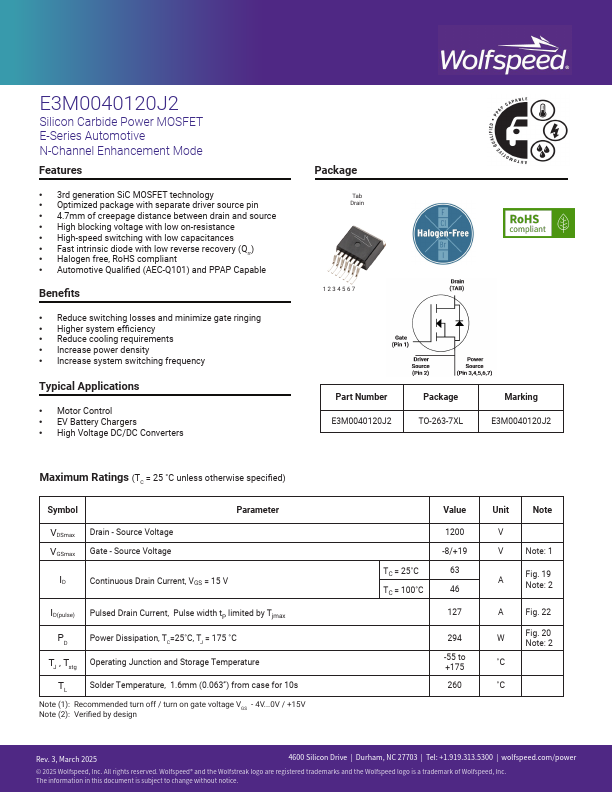

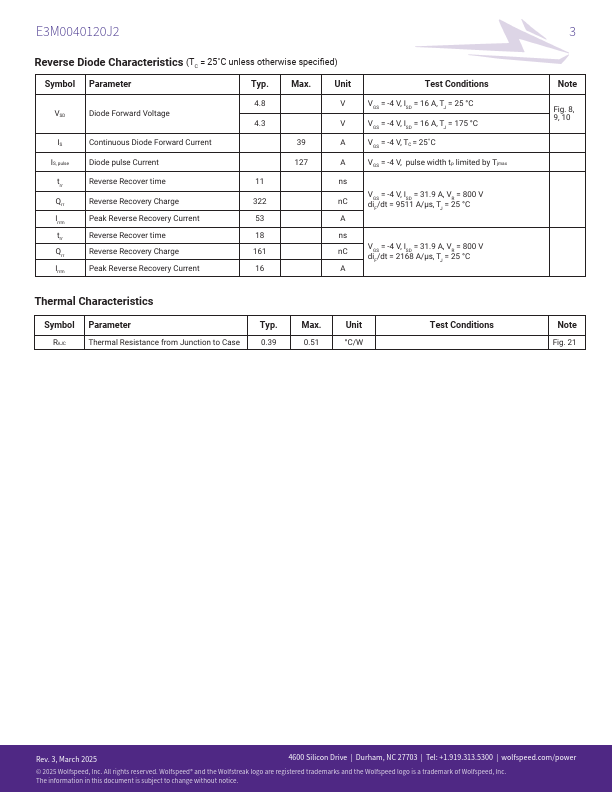

E3M0040120J2 Datasheet Preview — Preview of E3M0040120J2 PDF

Datasheet Details

Part number: E3M0040120J2
Manufacturer: Wolfspeed
File Size: 1.23 MB
Datasheet: E3M0040120J2-Wolfspeed.pdf
Description: Silicon Carbide Power MOSFET
