WSP4409 - P-Ch MOSFET

Winsok

The WSP4409 by Winsok is a P-Ch MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

WSP4409 P-Ch MOSFET by Winsok - Datasheet Preview — Official preview page of the **WSP4409** P-Ch MOSFET datasheet (Winsok).

Datasheet Details

Part number	WSP4409
Manufacturer	Winsok
File Size	2.05 MB
Description	P-Ch MOSFET
Datasheet	WSP4409-Winsok.pdf

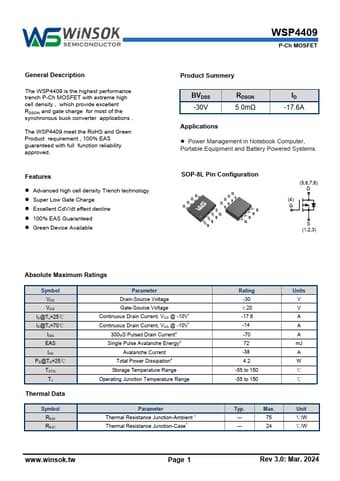

Additional preview pages of the WSP4409 datasheet.

WSP4409 Product details

Description

The WSP4409 is the highest performance trench P-Ch MOSFET with extreme high cell density , which provide excellent RDSON and gate charge for most of the synchronous buck converter applications .

Features

z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent CdV/dt effect decline z 100% EAS Guaranteed z Green Device Available WSP4409 P-Ch MOSFET Product Summery BVDSS -30V RDSON 5.0mΩ ID -17.6A.
