WSP4067B - N&P-Channel MOSFET

Winsok

The WSP4067B by Winsok is a N&P-Channel MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

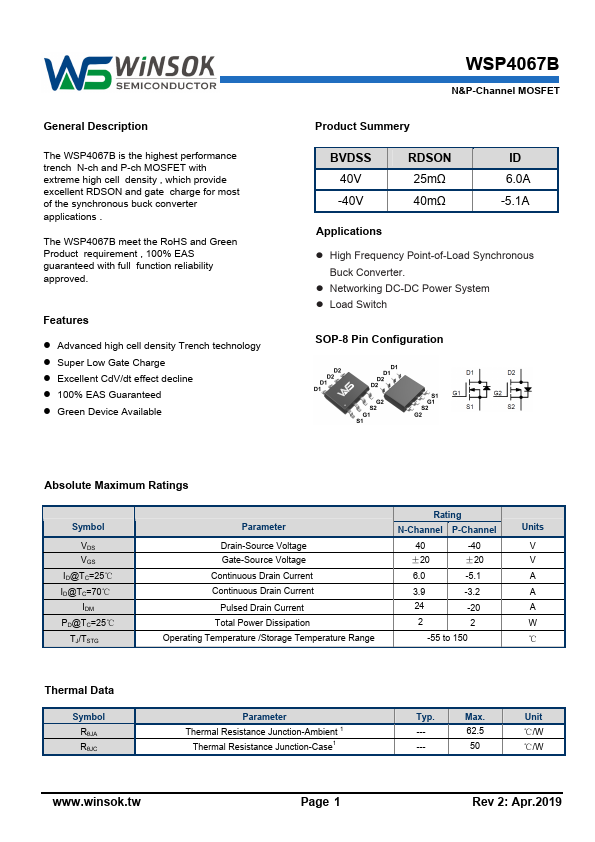

WSP4067B N&P-Channel MOSFET by Winsok - Datasheet Preview — Official preview page of the **WSP4067B** N&P-Channel MOSFET datasheet (Winsok).

Datasheet Details

Part number	WSP4067B
Manufacturer	Winsok
File Size	1.75 MB
Description	N&P-Channel MOSFET
Datasheet	WSP4067B-Winsok.pdf

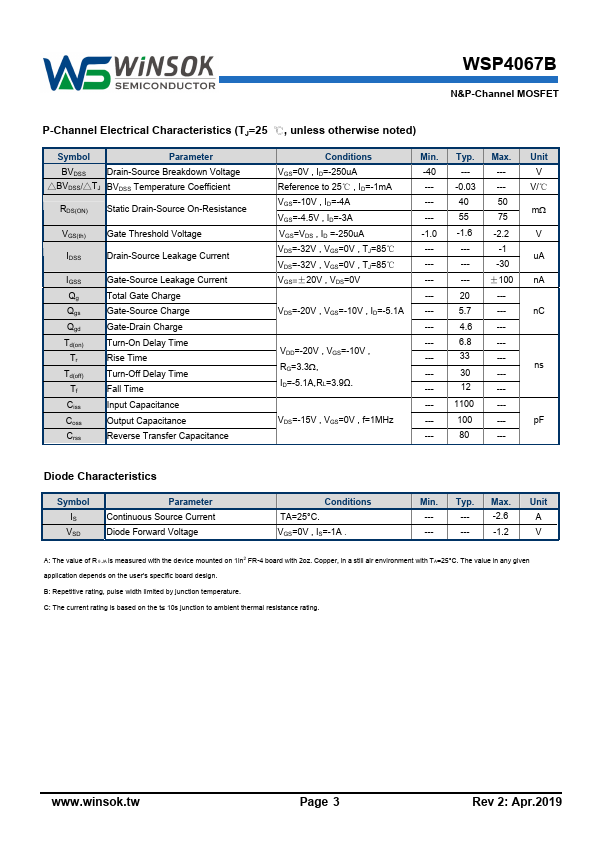

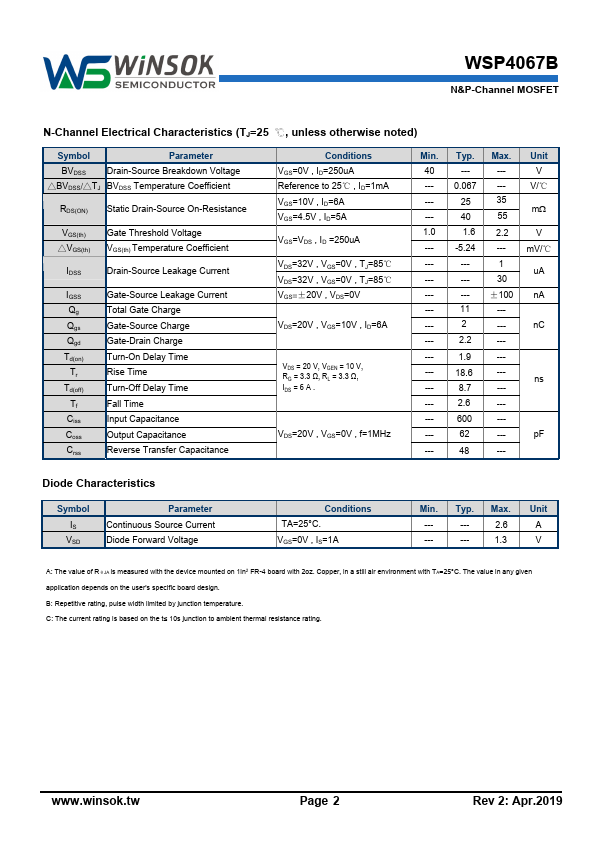

Additional preview pages of the WSP4067B datasheet.

WSP4067B Product details

Description

The WSP4067B is the highest performance trench N-ch and P-ch MOSFET with extreme high cell density , which provide excellent RDSON and gate charge for most of the synchronous buck converter applications .

Features

z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent CdV/dt effect decline z 100% EAS Guaranteed z Green Device Available WSP4067B N&P-Channel MOSFET Product Summery BVDSS 40V -40V RDSON 25mΩ 40mΩ ID 6.0A -5.1A.
