WSP4067C - N&P-Channel MOSFET

Winsok

The WSP4067C by Winsok is a N&P-Channel MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

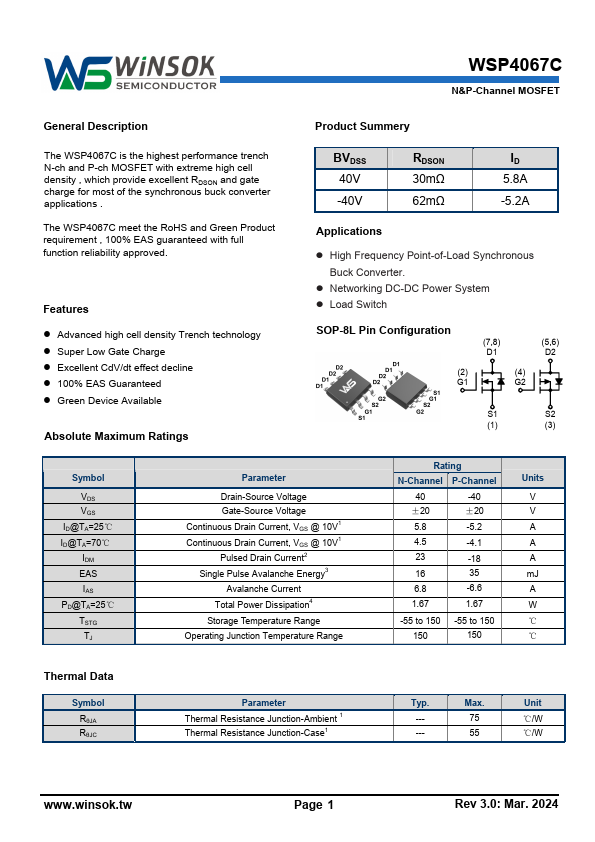

WSP4067C N&P-Channel MOSFET by Winsok - Datasheet Preview — Official preview page of the **WSP4067C** N&P-Channel MOSFET datasheet (Winsok).

Datasheet Details

Part number	WSP4067C
Manufacturer	Winsok
File Size	2.61 MB
Description	N&P-Channel MOSFET
Datasheet	WSP4067C-Winsok.pdf

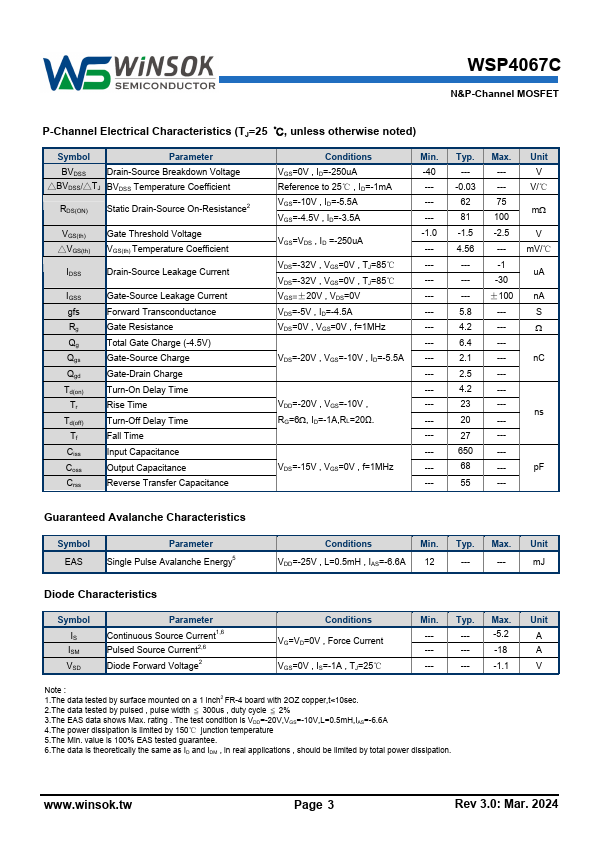

Additional preview pages of the WSP4067C datasheet.

WSP4067C Product details

Description

Product Summery The WSP4067C is the highest performance trench N-ch and P-ch MOSFET with extreme high cell density , which provide excellent RDSON and gate charge for most of the synchronous buck converter applications .The WSP4067C meet the RoHS and Green Product requirement , 100% EAS guaranteed with full function reliability approved.

Features

z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent CdV/dt effect decline z 100% EAS Guaranteed z Green Device Available Absolute Maximum Ratings BVDSS 40V -40V RDSON 30mΩ 62mΩ ID 5.8A -5.2A.
