WSP05N15 - N-Ch MOSFET

Winsok

The WSP05N15 by Winsok is a N-Ch MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

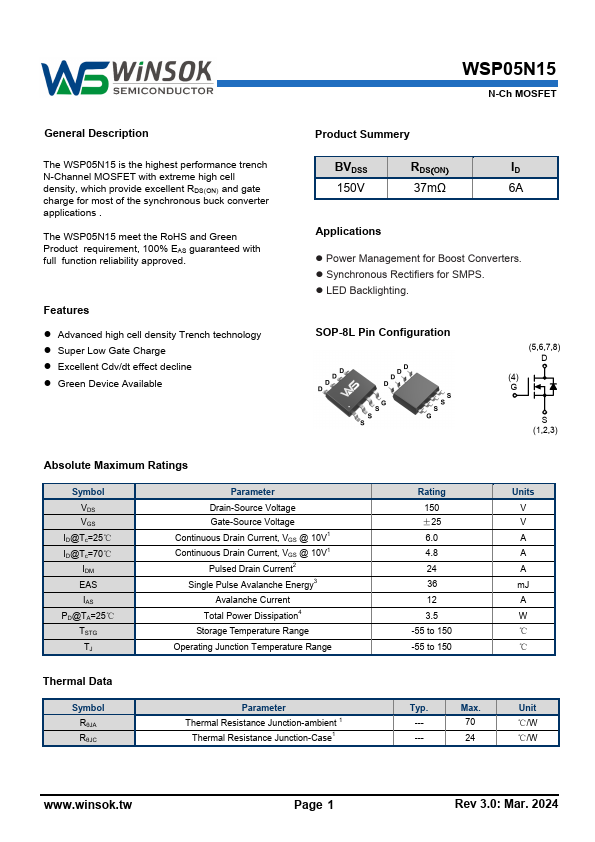

WSP05N15 N-Ch MOSFET by Winsok - Datasheet Preview — Official preview page of the **WSP05N15** N-Ch MOSFET datasheet (Winsok).

Datasheet Details

Part number	WSP05N15
Manufacturer	Winsok
File Size	1.55 MB
Description	N-Ch MOSFET
Datasheet	WSP05N15-Winsok.pdf

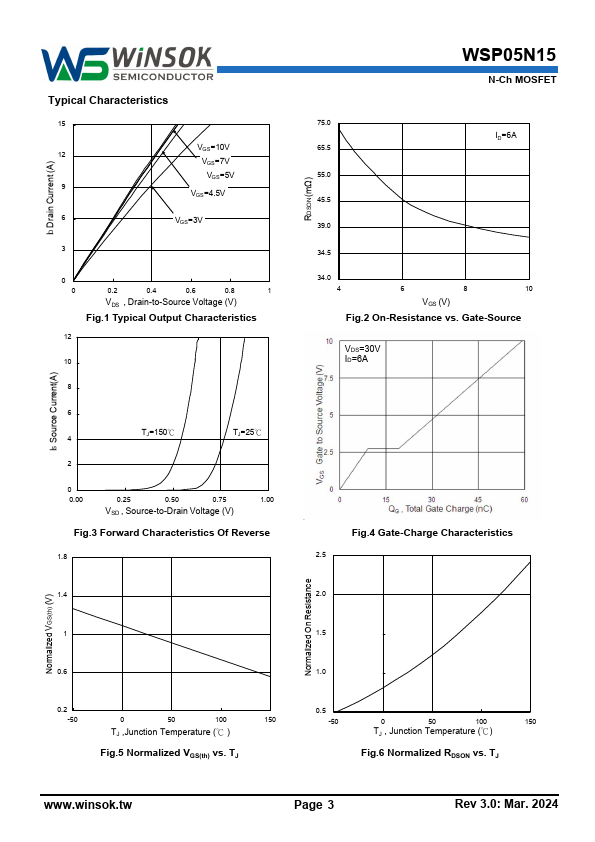

Additional preview pages of the WSP05N15 datasheet.

WSP05N15 Product details

Description

The WSP05N15 is the highest performance trench N-Channel MOSFET with extreme high cell density, which provide excellent RDS(ON) and gate charge for most of the synchronous buck converter applications .

Features

z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent Cdv/dt effect decline z Green Device Available Product Summery BVDSS RDS(ON) ID 150V 37mΩ 6A.
