WFP840 Silicon N-Channel MOSFET

WFP840 Description

WFP840 Silicon N-Channel MOSFET .
This Power MOSFET is produced using Winsemi ’s advanced planar stripe, DMOS technology.

WFP840 Features

* 8A,500V,RDS(on)(Max 0.8Ω)@VGS=10V
* Ultra-low Gate Charge(Typical 59nC)
* Fast Switching Capability
* 100%Avalanche Tested

📥 Download Datasheet

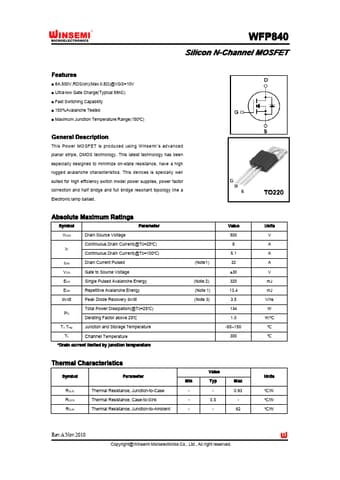

Preview of WFP840 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
WFP840
Manufacturer
Winsemi
File Size
736.33 KB
Datasheet
WFP840-Winsemi.pdf
Description
Silicon N-Channel MOSFET
