WNM03301D - Single N-Channel 30V 36A Power MOSFET

Product Overview

WillSEMI

📥 Download Datasheet

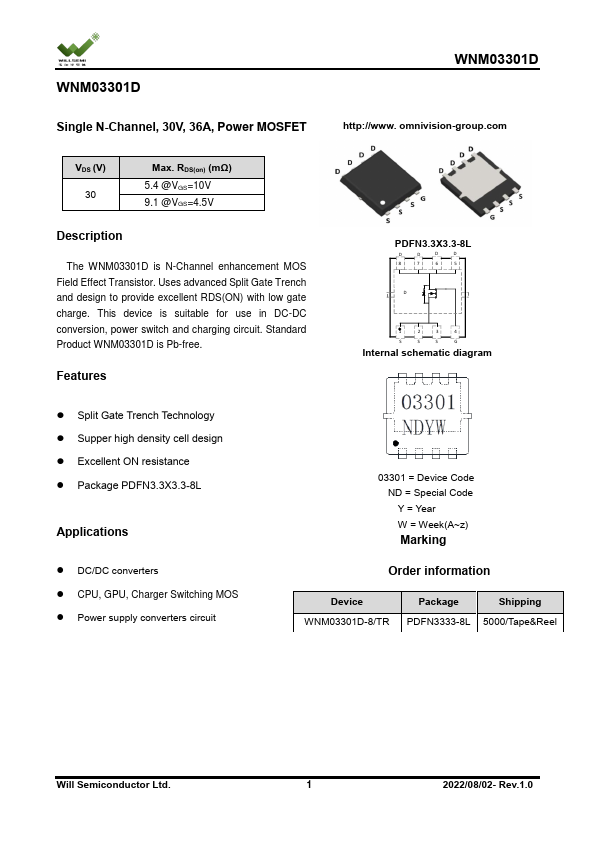

WNM03301D Single N-Channel 30V 36A Power MOSFET by WillSEMI - Datasheet Preview — Datasheet preview – WNM03301D

Datasheet Details

Part number	WNM03301D
Manufacturer	WillSEMI
File Size	558.42 KB
Description	Single N-Channel 30V 36A Power MOSFET
Datasheet	WNM03301D Datasheet

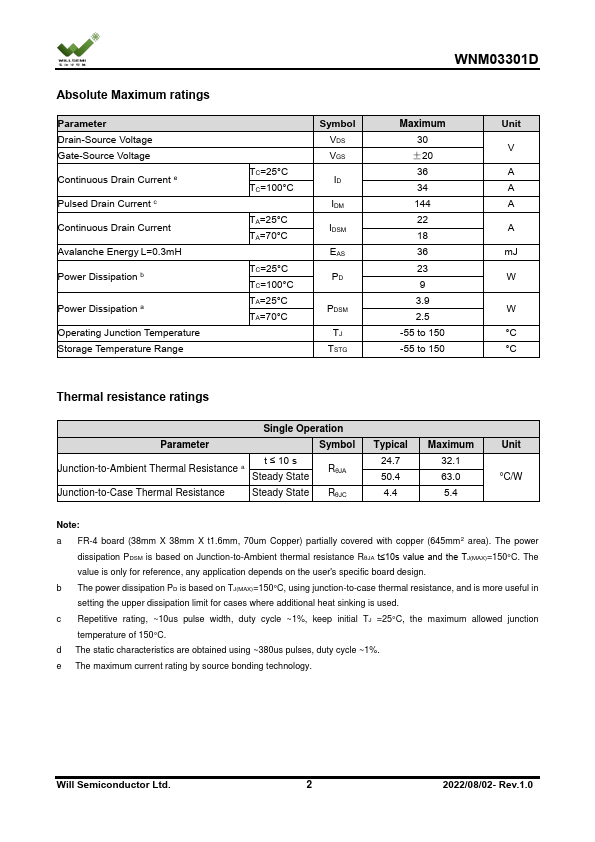

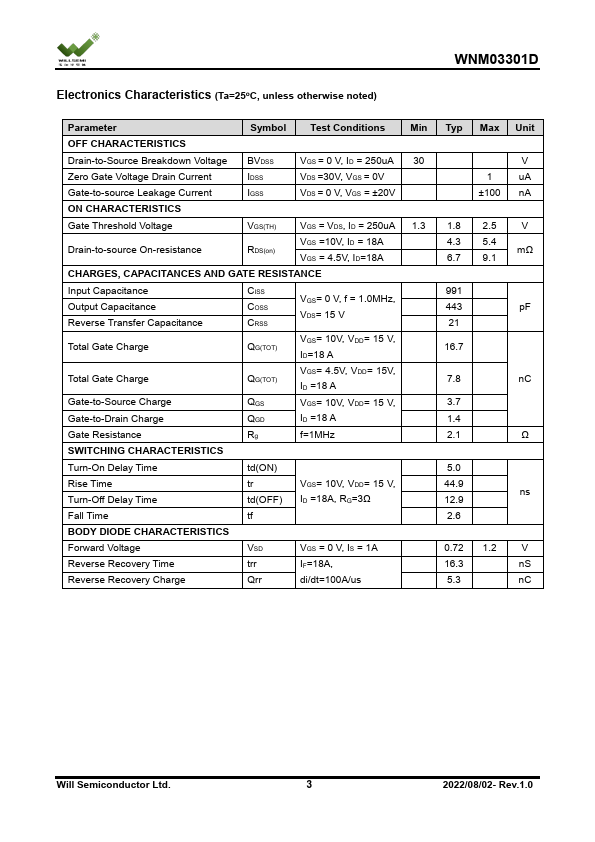

Additional preview pages of the WNM03301D datasheet.

Product details

Description

The WNM03301D is N-Channel enhancement MOS Field Effect Transistor.

Features

PDFN3.3X3.3-8L D D D D 8 7 6 5 D 1 2 3 4 S S S G Internal schematic diagram.
Split Gate Trench Technology.
Supper high density cell design.
Excellent ON resistance.
Package PDFN3.3X3.3-8L.
