WNM4017 - 40V 124A N-Channel Power MOSFET

Product Overview

Will Semiconductor

Datasheet Details

Part number	WNM4017
Manufacturer	Will Semiconductor
File Size	628.24 KB
Description	40V 124A N-Channel Power MOSFET
Datasheet	WNM4017 Datasheet

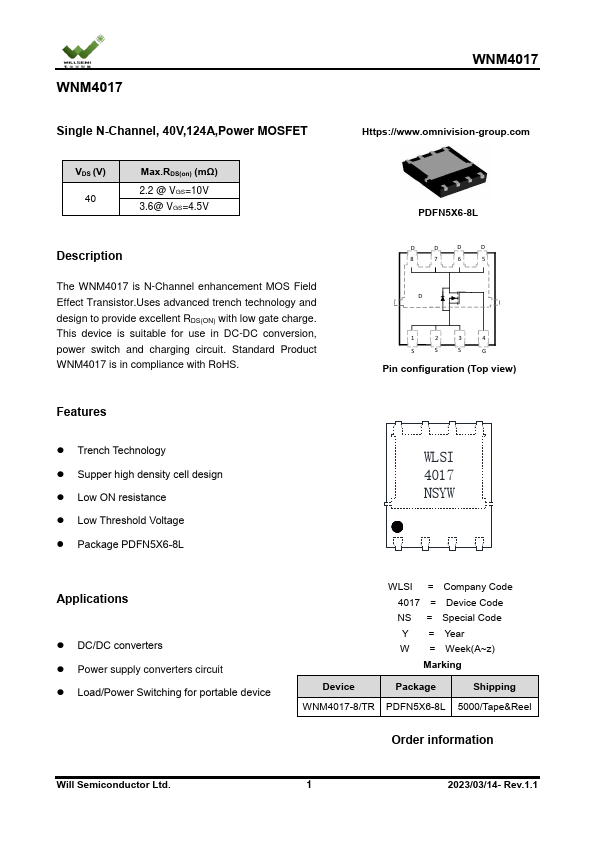

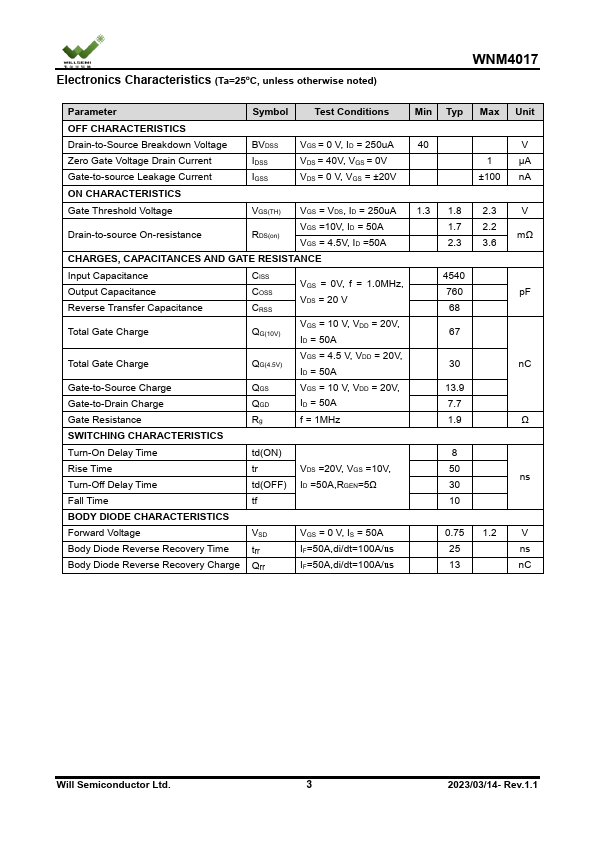

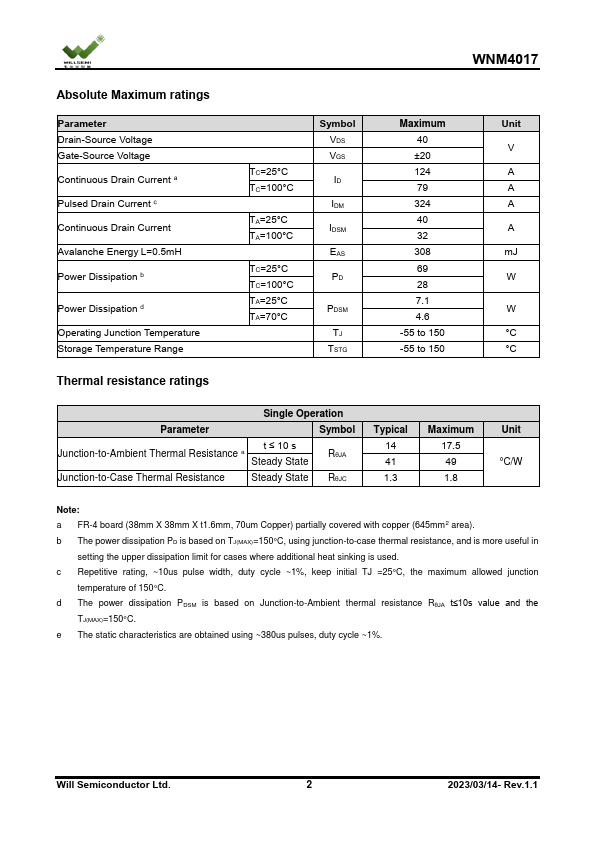

Additional preview pages of the WNM4017 datasheet.

Product details

Description

The WNM4017 is N-Channel enhancement MOS Field Effect Transistor.Uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

Features

Trench Technology.
Supper high density cell design.
Low ON resistance.
Low Threshold Voltage.
Package PDFN5X6-8L WLSI 4017 NSYW.
