WNM3062A - 30V 18.5A Single N-Channel Power MOSFET

Product Overview

Will Semiconductor

📥 Download Datasheet

WNM3062A 30V 18.5A Single N-Channel Power MOSFET by Will Semiconductor - Datasheet Preview — Datasheet preview – WNM3062A

Datasheet Details

Part number	WNM3062A
Manufacturer	Will Semiconductor
File Size	488.76 KB
Description	30V 18.5A Single N-Channel Power MOSFET
Datasheet	WNM3062A Datasheet
Additional preview pages of the WNM3062A datasheet.

Product details

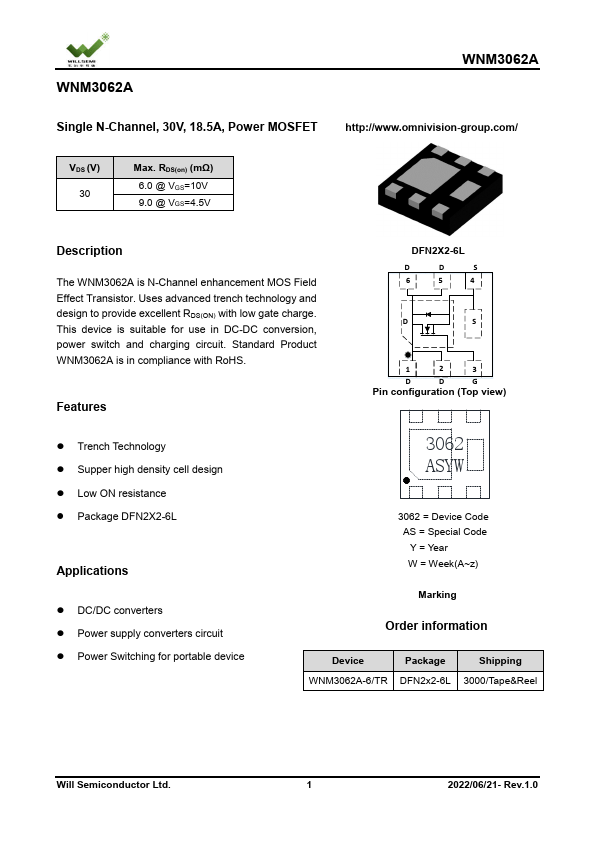

Description

The WNM3062A is N-Channel enhancement MOS Field Effect Transistor.

Features

DFN2X2-6L D D S 6 5 4 D S 1 2 3 D D G Pin configuration (Top view).
Trench Technology.
Supper high density cell design.
Low ON resistance.
Package DFN2X2-6L.
