EDI88128C - 128Kx8 MONOLITHIC SRAM

White Electronic Designs

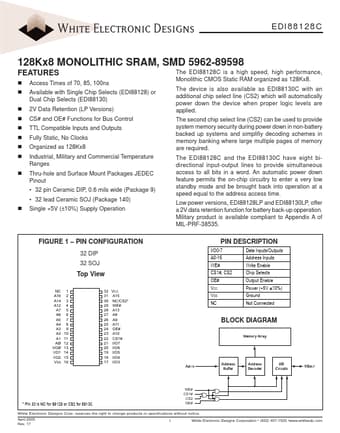

EDI88128C Datasheet Preview — Preview of EDI88128C PDF

Datasheet Details

Part number	EDI88128C
Manufacturer	White Electronic Designs
File Size	243.19 KB
Description	128Kx8 MONOLITHIC SRAM
Datasheet	EDI88128C_ETC.pdf

EDI88128C Product details

Description

I/O0-7 Data Inputs/Outputs A0-16 Address Inputs WE# Write Enable CS1#, CS2 Chip Selects OE# Output Enable VCC Power (+5V ±10%) VSS Ground NC Not Connected BLOCK D

Features

Access Times of 70, 85, 100ns.
Available with Single Chip Selects (EDI88128) or Dual Chip Selects (EDI88130).
2V Data Retention (LP Versions).
CS# and OE# Functions for Bus Control.
TTL Compatible Inputs and Outputs.
Fully Static, No Clocks.
Organized as 128Kx8.
Industrial, Military and Commercial Temperature Ranges.
Thru-hole and Surface Mount Packages JEDEC Pinout.
32 pin Ceramic DIP, 0.6 mils wide (Pack.
