EDI88257C - 256K x 8 Monolithic SRAM

White Electronic Designs

📥 Download Datasheet

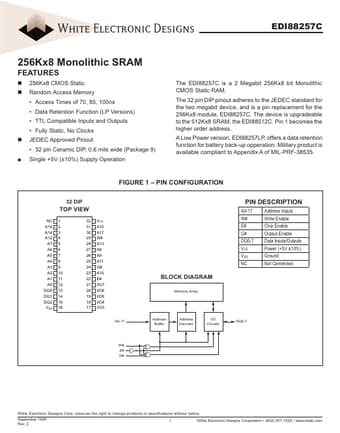

EDI88257C Datasheet Preview — Preview of EDI88257C PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	EDI88257C
Manufacturer	White Electronic Designs
File Size	194.34 KB
Description	256K x 8 Monolithic SRAM
Datasheet	EDI88257C-WhiteElectronicDesigns.pdf

EDI88257C Product details

Features

256Kx8 CMOS Static Random Access Memory.
Access Times of 70, 85, 100ns.
Data Retention Function (LP Versions).
TTL Compatible Inputs and Outputs.
Fully Static, No Clocks JEDEC Approved Pinout.
32 pin Ceramic DIP, 0.6 mils wide (Package 9).
Single +5V (±10%) Supply Operation The EDI88257C is a 2 Megabit 256Kx8 bit Monolithic CMOS Static RAM. The 32 pin DIP pinout adheres to the JEDEC standard for the two megabit device, and is a pin replacement f.
