EDI88128P - 128K X 8 STATIC RAM CMOS MONOLITHIC

EDI88128P Description

EDI88128C 128KX8 MONOLITHIC SRAM, SMD 5962-89598 n Access Times of 70, 85, 100ns n Available with Single Chip Selects (EDI88128) or Dual Chip Selects.

EDI88128P Features

* The EDI88128C is a high speed, high performance, Monolithic CMOS Static RAM organized as 128Kx8. The device is also available as EDI88130C with an additional chip select line (CS2) which will automatically power down the device when proper logic levels are applied. The second chip select line (CS2)

📥 Download Datasheet

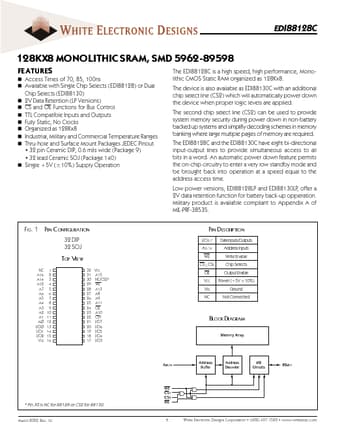

Preview of EDI88128P PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
EDI88128P
Manufacturer
ETC
File Size
153.47 KB
Datasheet
EDI88128P_ETC.pdf
Description
128K X 8 STATIC RAM CMOS MONOLITHIC
