VT6045CHM3, VT6045C-M3 - Dual Low-Voltage Trench MOS Barrier Schottky Rectifier

VT6045CHM3 Description

VT6045C-M3, VIT6045C-M3, VT6045CHM3, VIT6045CHM3 www.vishay.com Vishay General Semiconductor Dual Low-Voltage Trench MOS Barrier Schottky Rectifier.

VT6045CHM3 Features

* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Solder dip 275 °C max. 10 s, per JESD 22-B106
* AEC-Q101 qualified
* Material categorization: For definitions of compliance please see www. visha

VT6045CHM3 Applications

* For use in high frequency DC/DC converters, switching power supplies, freewheeling diodes, OR-ing diode, and reverse battery protection. PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF at IF = 30 A TJ max. Package 2 x 30 A 45 V 320 A 0.47 V 150 °C TO-220AB, TO-262AA Diode variations Dual common cat

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: VT6045CHM3, VT6045C-M3. Please refer to the document for exact specifications by model.

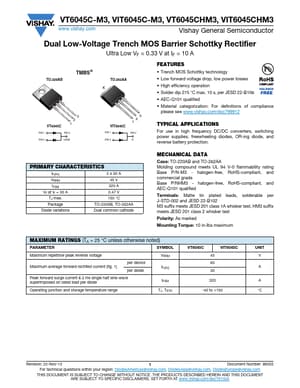

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VT6045CHM3, VT6045C-M3
Manufacturer
Vishay ↗
File Size
130.64 KB
Datasheet
VT6045C-M3-Vishay.pdf
Description
Dual Low-Voltage Trench MOS Barrier Schottky Rectifier
Note
This datasheet PDF includes multiple part numbers: VT6045CHM3, VT6045C-M3.
Please refer to the document for exact specifications by model.
