Datasheet Details
- Part number
- VS-VSKCS440-030
- Manufacturer
- Vishay ↗
- File Size
- 132.64 KB
- Datasheet
- VS-VSKCS440-030-Vishay.pdf
- Description
- Power Modules Schottky Rectifier
VS-VSKCS440-030 Description

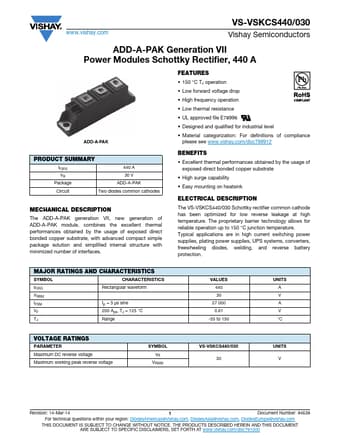

www.vishay.com VS-VSKCS440/030 Vishay Semiconductors ADD-A-PAK Generation VII Power Modules Schottky Rectifier, 440 A ADD-A-PAK PRODUCT SUMMARY I.
The ADD-A-PAK generation VII, new generation of ADD-A-PAK module, combines the excellent thermal performances obtained by the usage of exposed direct.
VS-VSKCS440-030 Features
* 150 °C TJ operation
* Low forward voltage drop
* High frequency operation
* Low thermal resistance
* UL approved file E78996
* Designed and qualified for industrial level
* Material categorization: For definitions of compliance please see www
VS-VSKCS440-030 Applications
* are in high current switching power supplies, plating power supplies, UPS systems, converters, freewheeling diodes, welding, and reverse battery protection. MAJOR RATINGS AND CHARACTERISTICS
SYMBOL
CHARACTERISTICS
IF(AV)
Rectangular waveform
VRRM
IFSM
tp = 5 μs sine
VF 200 Apk, TJ = 125 °C
