VS-VSKCS403-100 - Power Modules Schottky Rectifier

VS-VSKCS403-100 Description

www.vishay.com VS-VSKCS403/100 Vishay Semiconductors ADD-A-PAK Generation VII Power Modules Schottky Rectifier, 400 A ADD-A-PAK PRODUCT SUMMARY I.
The ADD-A-PAK generation VII, new generation of ADD-A-PAK module, combines the excellent thermal performances obtained by the usage of exposed direct.

VS-VSKCS403-100 Features

* 175 °C TJ operation
* Low forward voltage drop
* High frequency operation
* Low thermal resistance
* UL approved file E78996
* Designed and qualified for industrial level
* Material categorization: For definitions of compliance please see www

VS-VSKCS403-100 Applications

* are in high current switching power supplies, plating power supplies, UPS systems, converters, freewheeling diodes, welding, and reverse battery protection.    MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) VRRM IFSM Rectangular waveform tp = 5 μs sine VF 200 Apk, TJ = 125

📥 Download Datasheet

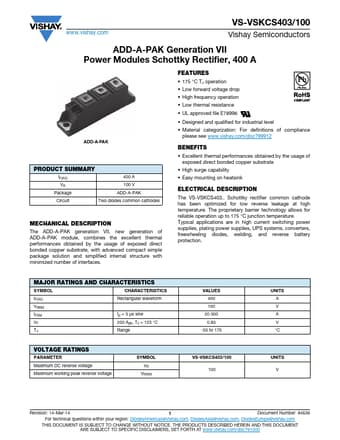

Preview of VS-VSKCS403-100 PDF
datasheet Preview Page 2 datasheet Preview Page 3
