VS-VSKCS400-045 Power Modules Schottky Rectifier

Vishay

Description

www.vishay.com VS-VSKCS400/045 Vishay Semiconductors ADD-A-PAK Generation VII Power Modules Schottky Rectifier, 400 A ADD-A-PAK PRODUCT SUMMARY I.
The ADD-A-PAK generation VII, new generation of ADD-A-PAK module, combines the excellent thermal performances obtained by the usage of exposed direct.

📥 Download Datasheet

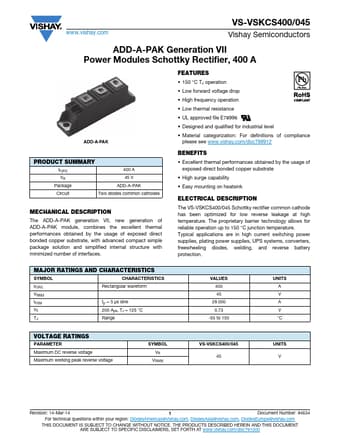

VS-VSKCS400-045 Datasheet Preview — Preview of VS-VSKCS400-045 PDF

Datasheet Specifications

Part number: VS-VSKCS400-045
Manufacturer: Vishay ↗
File Size: 136.01 KB
Datasheet: VS-VSKCS400-045-Vishay.pdf
Description: Power Modules Schottky Rectifier

Features

* 150 °C TJ operation
* Low forward voltage drop
* High frequency operation
* Low thermal resistance
* UL approved file E78996
* Designed and qualified for industrial level
* Material categorization: For definitions of compliance please see www

Applications

* are in high current switching power supplies, plating power supplies, UPS systems, converters, freewheeling diodes, welding, and reverse battery protection. MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) VRRM IFSM VF TJ Rectangular waveform tp = 5 μs sine 200 Apk, TJ = 125 °C R
