VS-MBR2545CT-1PbF, VS-MBRB2535CTPbF Schottky Rectifier

Vishay

Description

VS-MBRB25..CTPbF, VS-MBR25..CT-1PbF Series Vishay High Power Products Schottky Rectifier, 2 x 15 A VS-MBRB25..CTPbF VS-MBR25..CT-1PbF Base common c.
This center tap Schottky rectifier has been optimized for low reverse leakage at high temperature.

📥 Download Datasheet

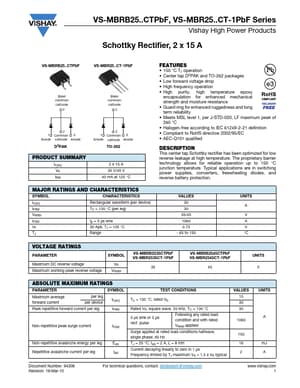

VS-MBR2545CT-1PbF Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-MBR2545CT-1PbF, VS-MBRB2535CTPbF. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: VS-MBR2545CT-1PbF, VS-MBRB2535CTPbF
Manufacturer: Vishay ↗
File Size: 169.42 KB
Datasheet: VS-MBRB2535CTPbF-Vishay.pdf
Description: Schottky Rectifier
Note: This datasheet PDF includes multiple part numbers: VS-MBR2545CT-1PbF, VS-MBRB2535CTPbF.
Please refer to the document for exact specifications by model.

Features

* 150 °C TJ operation
* Center tap D2PAK and TO-262 packages
* Low forward voltage drop
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ru

Applications

* are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) IFRM VRRM IFSM VF TJ Rectangular waveform (per device) TC = 130 °C (per leg) tp = 5 μs sine 30 Apk, TJ = 125 °C Range VALUES 30 30 3
