VS-MBRB3045CTPbF, VS-MBRB3035CTPbF Schottky Rectifier

VS-MBRB3045CTPbF Description

VS-MBRB30..CTPbF, VS-MBR30..CT-1PbF Series VS-MBRB30..CTPbF VS-MBR30..CT-1PbF .
This center tap Schottky rectifier has been optimized for low reverse leakage at high temperature.

VS-MBRB3045CTPbF Features

* 150 °C TJ operation Low forward voltage drop High frequency operation Center tap D2PAK and TO-262 packages High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance Guard ring for enhanced ruggedness a

VS-MBRB3045CTPbF Applications

* are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. PRODUCT SUMMARY IF(AV) VR IRM 2 x 15 A 35 V/45 V 100 mA at 125 °C MAJOR RATINGS AND CHARACTERISTICS SYMBOL IF(AV) IFRM VRRM IFSM VF TJ tp = 5 μs sine 20 Apk, TJ = 125 °C Range CHARACTERISTICS Rectangu

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: VS-MBRB3045CTPbF, VS-MBRB3035CTPbF. Please refer to the document for exact specifications by model.

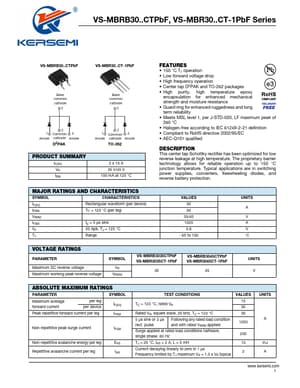

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VS-MBRB3045CTPbF, VS-MBRB3035CTPbF
Manufacturer
Kersemi
File Size
1.90 MB
Datasheet
VS-MBRB3035CTPbF-Kersemi.pdf
Description
Schottky Rectifier
Note
This datasheet PDF includes multiple part numbers: VS-MBRB3045CTPbF, VS-MBRB3035CTPbF.
Please refer to the document for exact specifications by model.
