VS-MBR2535CT-N3, VS-MBR2535CTPbF Schottky Rectifier

Vishay

Description

VS-MBR25CTPbF Series, VS-MBR25CT-N3 Series www.vishay.com Vishay Semiconductors Schottky Rectifier, 2 x 15 A Base 2 common cathode TO-220AB PRODU.
This center tap Schottky rectifier has been optimized for low reverse leakage at high temperature.

📥 Download Datasheet

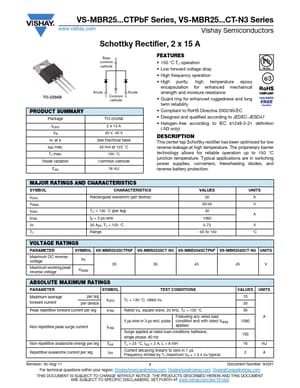

VS-MBR2535CT-N3 Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-MBR2535CT-N3, VS-MBR2535CTPbF. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: VS-MBR2535CT-N3, VS-MBR2535CTPbF
Manufacturer: Vishay ↗
File Size: 163.20 KB
Datasheet: VS-MBR2535CTPbF-Vishay.pdf
Description: Schottky Rectifier
Note: This datasheet PDF includes multiple part numbers: VS-MBR2535CT-N3, VS-MBR2535CTPbF.
Please refer to the document for exact specifications by model.

Features

* 150 °C TJ operation
* Low forward voltage drop
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and long term reliability
* Co

Applications

* are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) Rectangular waveform (per device) VRRM IFRM TC = 130 °C (per leg) IFSM tp = 5 μs sine VF 30 Apk, TJ = 125 °C TJ Range VALUES 30
