VLMYG30H2K1-GS18, VLMPG30E1F2-GS08 - Low Current SMD LED PLCC-2

Name: VLMYG30H2K1-GS18
SKU: VLMYG30H2K1-GS18-1105882

Vishay

📥 Download Datasheet

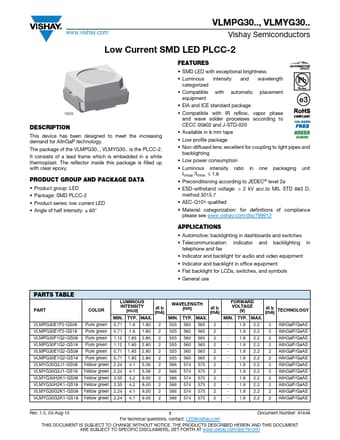

VLMYG30H2K1-GS18 Datasheet Preview — This datasheet PDF includes multiple part numbers: VLMYG30H2K1-GS18, VLMPG30E1F2-GS08. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	VLMYG30H2K1-GS18, VLMPG30E1F2-GS08
Manufacturer	Vishay
File Size	179.07 KB
Description	Low Current SMD LED PLCC-2
Datasheet	VLMPG30E1F2-GS08-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: VLMYG30H2K1-GS18, VLMPG30E1F2-GS08. Please refer to the document for exact specifications by model.

VLMYG30H2K1-GS18 Product details

Description

This device has been designed to meet the increasing demand for AlInGaP technology. Product group: LED Package: SMD PLCC-2 Product series: low current LED Angle of half intensity: ± 60°

Features

SMD LED with exceptional brightness.
Luminous intensity and wavelength categorized.
Compatible with automatic placement equipment.
EIA and ICE standard package.
Compatible with IR reflow, vapor phase and wave solder processes according to CECC 00802 and J-STD-020.
Available in 8 mm tape.
Low profile package.
Non-diffused lens: excellent for coupling to light pipes and backlighting.
Low power consumption.
L.
