VLMY21H2K1-GS08 - Standard Mini SMD LED

Product Overview

Vishay

📥 Download Datasheet

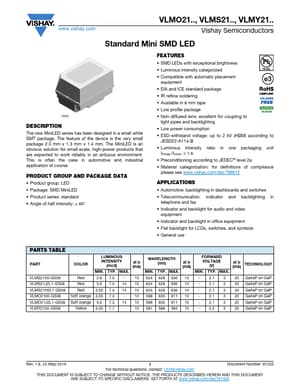

VLMY21H2K1-GS08 Standard Mini SMD LED by Vishay - Datasheet Preview — Datasheet preview – VLMY21H2K1-GS08

Datasheet Details

Part number	VLMY21H2K1-GS08
Manufacturer	Vishay
File Size	345.38 KB
Description	Standard Mini SMD LED
Datasheet	VLMY21H2K1-GS08 Datasheet
Note	This datasheet PDF includes multiple part numbers: VLMY21H2K1-GS08, VLMS2100-GS08. Please refer to the document for exact specifications by model.
Additional preview pages of the VLMY21H2K1-GS08 datasheet.

Product details

Description

The new MiniLED series has been designed in a small white SMT package. Product group: LED Package: SMD MiniLED Product series: standard Angle

Features

SMD LEDs with exceptional brightness.
Luminous intensity categorized.
Compatible with automatic placement equipment.
EIA and ICE standard package.
IR reflow soldering.
Available in 8 mm tape.
Low profile package.
Non-diffused lens: excellent for coupling to light pipes and backlighting.
Low power consumption.
ESD-withstand voltage: up to 2 kV (HBM) according to JESD22-A114-B.
Luminous intensity ra.
