VLMW1502-GS08, VLMW1501-GS08 - Ultrabright 0402 ChipLED

Vishay

📥 Download Datasheet

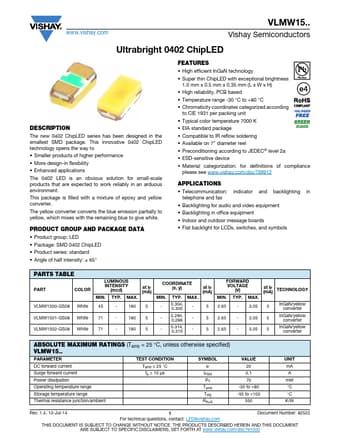

VLMW1502-GS08 Datasheet Preview — This datasheet PDF includes multiple part numbers: VLMW1502-GS08, VLMW1501-GS08. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	VLMW1502-GS08, VLMW1501-GS08
Manufacturer	Vishay
File Size	182.54 KB
Description	Ultrabright 0402 ChipLED
Datasheet	VLMW1501-GS08-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: VLMW1502-GS08, VLMW1501-GS08. Please refer to the document for exact specifications by model.

VLMW1502-GS08 Product details

Description

The new 0402 ChipLED series has been designed in the smallest SMD package. Smaller products of higher performance More design-in flexibility Enhanced applications The 0402 LED is an obvious solution for small-scale products that are expected to work reliably in an arduous environment.

Features

High efficient InGaN technology.
Super thin ChipLED with exceptional brightness 1.0 mm x 0.5 mm x 0.35 mm (L x W x H).
High reliability, PCB based.
Temperature range -30 °C to +80 °C.
Chromati.
