VLMW21P1Q2-5K8L-08, VLMW2100-5K8L-08 - Standard Mini SMD LED

Vishay

📥 Download Datasheet

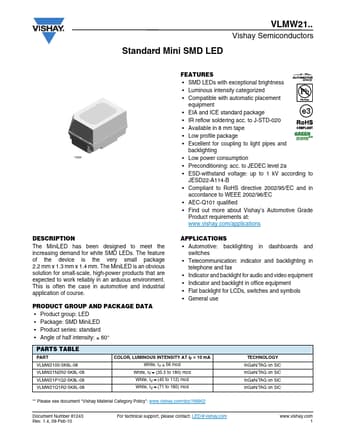

VLMW21P1Q2-5K8L-08 Datasheet Preview — This datasheet PDF includes multiple part numbers: VLMW21P1Q2-5K8L-08, VLMW2100-5K8L-08. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	VLMW21P1Q2-5K8L-08, VLMW2100-5K8L-08
Manufacturer	Vishay
File Size	327.93 KB
Description	Standard Mini SMD LED
Datasheet	VLMW2100-5K8L-08-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: VLMW21P1Q2-5K8L-08, VLMW2100-5K8L-08. Please refer to the document for exact specifications by model.

VLMW21P1Q2-5K8L-08 Product details

Description

The MiniLED has been designed to meet the increasing demand for white SMD LEDs.

Features

SMD LEDs with exceptional brightness.
Luminous intensity categorized.
Compatible with automatic placement equipment.
EIA and ICE standard package.
IR reflow soldering acc. to J-STD-020.
Available in 8 mm tape.
Low profile package.
Excellent for coupling to light pipes and backlighting 19226.
Low power consumption.
Preconditioning: acc. to JEDEC level 2a.
ESD-withstand voltage: up to 1 kV according.
