VLMW1500-GS08, VLMW1500 - Ultrabright 0402 ChipLED

Vishay Semiconductors

📥 Download Datasheet

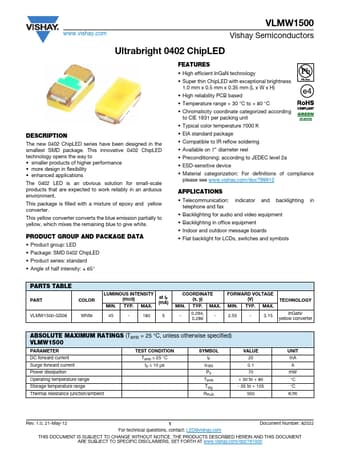

VLMW1500-GS08 Datasheet Preview — This datasheet PDF includes multiple part numbers: VLMW1500-GS08, VLMW1500. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	VLMW1500-GS08, VLMW1500
Manufacturer	Vishay Semiconductors
File Size	245.70 KB
Description	Ultrabright 0402 ChipLED
Datasheet	VLMW1500_VishaySemiconductors.pdf
Note	This datasheet PDF includes multiple part numbers: VLMW1500-GS08, VLMW1500. Please refer to the document for exact specifications by model.

VLMW1500-GS08 Product details

Description

The new 0402 ChipLED series have been designed in the smallest SMD package. smaller products of higher performance more design in flexibility enhanced applications The 0402 LED is an obvious solution for small-scale products that are expected to work reliably in an arduous environment.

Features

High efficient InGaN technology.
Super thin ChipLED with exceptional brightness 1.0 mm x 0.5 mm x 0.35 mm (L x W x H).
High reliability PCB based.
Temperature range + 30 °C to + 80 °C.
Chromaticity coordinate categorized according to CIE 1931 per packing unit.
Typical color temperature 7000 K.
