VLMS3101-GS18, VLMS3100-GS08 - Standard SMD LED PLCC-2

Vishay

The VLMS3101-GS18 by Vishay is a Standard SMD LED PLCC-2. Below is the official datasheet preview.

📥 Download Datasheet

VLMS3101-GS18 Standard SMD LED PLCC-2 by Vishay - Datasheet Preview — Official preview page of the **VLMS3101-GS18** Standard SMD LED PLCC-2 datasheet (Vishay).

Datasheet Details

Part number	VLMS3101-GS18, VLMS3100-GS08
Manufacturer	Vishay
File Size	174.07 KB
Description	Standard SMD LED PLCC-2
Datasheet	VLMS3100-GS08-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: VLMS3101-GS18, VLMS3100-GS08. Please refer to the document for exact specifications by model.

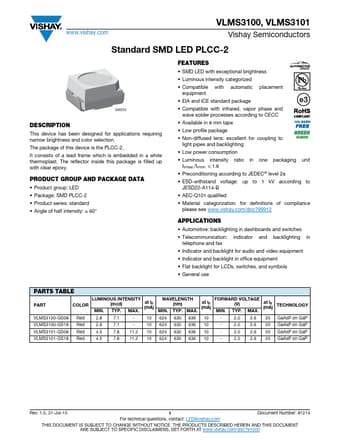

Additional preview pages of the VLMS3101-GS18 datasheet.

VLMS3101-GS18 Product details

Description

This device has been designed for applications requiring narrow brightness and color selection. Product group: LED Package: SMD PLCC-2 Product series: standard Angle of half intensity: ± 60°

Features

SMD LED with exceptional brightness.
Luminous intensity categorized.
Compatible with automatic placement equipment.
EIA and ICE standard package.
Compatible with infrared, vapor phase and wave solder processes according to CECC.
Available in 8 mm tape.
Low profile package.
Non-diffused lens: excellent for coupling to light pipes and backlighting.
Low power consumption.
Luminous intensity ratio in one packa.
