VLMR333U1AA-GS08 - Power SMD LED PLCC-2

Product Overview

Vishay

📥 Download Datasheet

VLMR333U1AA-GS08 Power SMD LED PLCC-2 by Vishay - Datasheet Preview — Datasheet preview – VLMR333U1AA-GS08

Datasheet Details

Part number	VLMR333U1AA-GS08
Manufacturer	Vishay
File Size	227.65 KB
Description	Power SMD LED PLCC-2
Datasheet	VLMR333U1AA-GS08 Datasheet
Note	This datasheet PDF includes multiple part numbers: VLMR333U1AA-GS08, VLMS333T2V2-GS08. Please refer to the document for exact specifications by model.

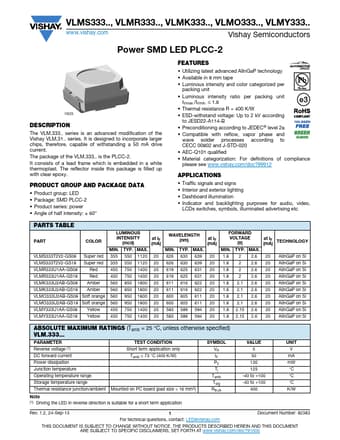

Additional preview pages of the VLMR333U1AA-GS08 datasheet.

Product details

Description

The VLM.333.. Product group: LED Package: SMD PLCC-2 Product series: power Angle o

Features

Utilizing latest advanced AlInGaP technology.
Available in 8 mm tape.
Luminous intensity and color categorized per packing unit.
Luminous intensity ratio per packing unit IVmax. /IVmin. ≤ 1.6.
Thermal resistance R = 400 K/W.
ESD-withstand voltage: Up to 2 kV according to JESD22-A114-B.
Preconditioning according to JEDEC® level 2.
