VLMR234ABCA-GS08 - Power Mini SMD LED

Product Overview

Vishay

Datasheet Details

Part number	VLMR234ABCA-GS08
Manufacturer	Vishay
File Size	258.69 KB
Description	Power Mini SMD LED
Datasheet	VLMR234ABCA-GS08 Datasheet
Note	This datasheet PDF includes multiple part numbers: VLMR234ABCA-GS08, VLMS234V2BA-GS08. Please refer to the document for exact specifications by model.

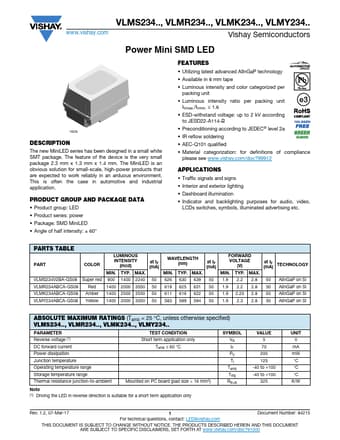

Additional preview pages of the VLMR234ABCA-GS08 datasheet.

Product details

Description

The new MiniLED series has been designed in a small white SMT package. Product group: LED Product series: power Package: SMD MiniLED Angle of half inten

Features

Utilizing latest advanced AlInGaP technology.
Available in 8 mm tape.
Luminous intensity and color categorized per packing unit.
Luminous intensity ratio per packing unit IVmax. /IVmin. ≤ 1.6.
ESD-withstand voltage: up to 2 kV according to JESD22-A114-B.
Preconditioning according to JEDEC® level 2a.
IR reflow soldering.
AEC-Q101 qualified.
Materia.
