VLMK3100 - Standard SMD LED PLCC-2

Name: VLMK3100
SKU: VLMK3100-1105784

Vishay

📥 Download Datasheet

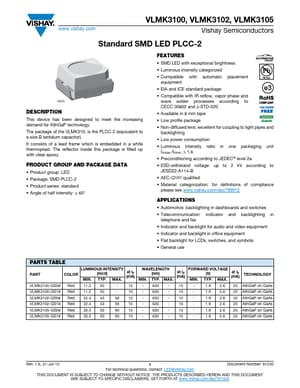

VLMK3100 Datasheet Preview — Preview of VLMK3100 PDF

Datasheet Details

Part number	VLMK3100
Manufacturer	Vishay
File Size	171.51 KB
Description	Standard SMD LED PLCC-2
Datasheet	VLMK3100-Vishay.pdf

VLMK3100 Product details

Description

This device has been designed to meet the increasing demand for AlInGaP technology. Product group: LED Package: SMD PLCC-2 Product series: standard Angle of half intensity: ± 60°

Features

SMD LED with exceptional brightness.
Luminous intensity categorized.
Compatible with automatic placement equipment.
EIA and ICE standard package.
Compatible with IR reflow, vapor phase and wave solder processes according to CECC 00802 and J-STD-020.
Available in 8 mm tape.
Low profile package.
Non-diffused lens: excellent for coupling to light pipes and backlighting.
Low power consumption.
