VESD03A1C-HD1 - ESD Protection Diode

Features

  • Ultra compact LLP1006-2L package.
  • Low package height < 0.4 mm.
  • 1-line ESD-protection.
  • Low leakage current < 1 μA.
  • Low load capacitance CD = 46 pF (VR = 2.5 V; f = 1 MHz).
  • ESD immunity acc. IEC 61000-4-2 ± 30 kV contact discharge ± 30 kV air discharge.
  • High surge current acc. IEC 61000-4-5 IPP > 9.5 A.
  • Soldering can be checked by standard vision inspection. No X-ray necessary.
  • Pin plating NiPdAu (e4) no whisker g.

📥 Download Datasheet

📁 Similar Datasheet

  • VESD05A1-02V - ESD Protection Diode (Vishay Siliconix)
  • VESD05C-FC1 - Flip Chip Protection Diode (Vishay Siliconix)
  • VES1820X - SINGLE CHIP DVB-C CHANNEL RECEIVER (NXP)
  • VES1993 - SINGLE CHIP SATELLITE CHANNEL RECEIVER (NXP)
  • VES9600 - SINGLE CHIP DVB-T CHANNEL RECEIVER (NXP)
Other Datasheets by Vishay

Full PDF Text Transcription

Click to expand full text

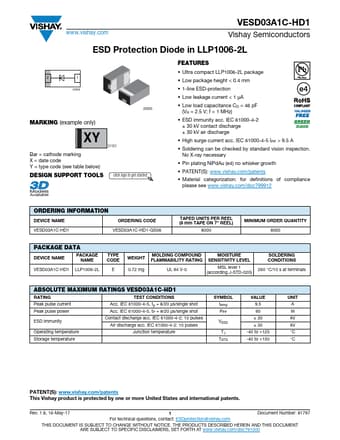

www.vishay.com VESD03A1C-HD1 Vishay Semiconductors ESD Protection Diode in LLP1006-2L 21 20856 20855 MARKING (example only) XY 21121 Bar = cathode marking X = date code Y = type code (see table below) DESIGN SUPPORT TOOLS click logo to get started Models Available FEATURES • Ultra compact LLP1006-2L package • Low package height < 0.4 mm • 1-line ESD-protection • Low leakage current < 1 μA • Low load capacitance CD = 46 pF (VR = 2.5 V; f = 1 MHz) • ESD immunity acc. IEC 61000-4-2 ± 30 kV contact discharge ± 30 kV air discharge • High surge current acc. IEC 61000-4-5 IPP > 9.5 A • Soldering can be checked by standard vision inspection. No X-ray necessary • Pin plating NiPdAu (e4) no whisker growth • PATENT(S): www.vishay.
