V12P15 Trench MOS Barrier Schottky Rectifier

Vishay

Description

www.vishay.com V12P15 Vishay General Semiconductor High Current Density Surface Mount TMBS® (Trench MOS Barrier Schottky) Rectifier Ultra Low VF = 0.

📥 Download Datasheet

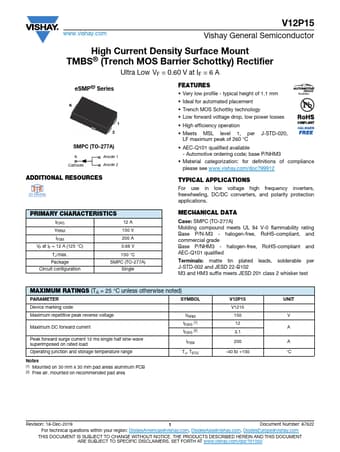

V12P15 Datasheet Preview — Preview of V12P15 PDF

Datasheet Specifications

Part number: V12P15
Manufacturer: Vishay ↗
File Size: 100.86 KB
Datasheet: V12P15-Vishay.pdf
Description: Trench MOS Barrier Schottky Rectifier

Features

* Very low profile - typical height of 1.1 mm Available
* Ideal for automated placement
* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Meets MSL level 1, per J-STD-020, LF maximum peak

Applications

* For use in low voltage high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications. PRIMARY CHARACTERISTICS IF(AV) 12 A VRRM 150 V IFSM 200 A VF at IF = 12 A (125 °C) 0.66 V TJ max. Package 150 °C SMPC (TO-277A) Circuit configuration Single MECHANICAL
